Figure Q4(c): JFET Circuit Configuration RD 560Ω VDD

Post by answerhappygod »

1
1 (25.28 KiB) Viewed 19 times

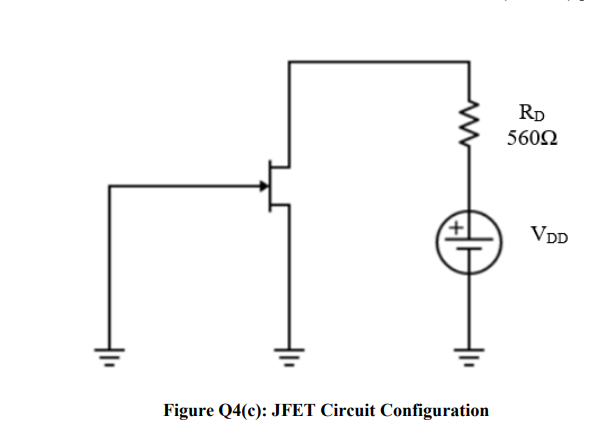

For the JFET Configuration in Figure Q4(c), given VDS = - 4V andVDD = 10.7 V. Determine the drop across the drain resistor, VRD.What is the minimum value of VDD required to put the device in theconstant-current region of operation when VGS = 0V?
Figure Q4(c): JFET Circuit Configuration RD 560Ω VDD
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
