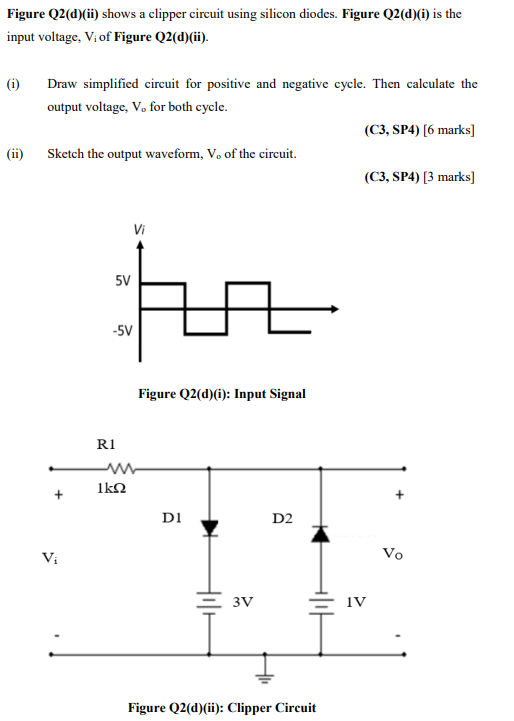

Figure Q2(d)(ii) shows a clipper circuit using silicon diodes. Figure Q2(d)(i) is the input voltage, V₁ of Figure Q2(d)(

[answerhappygod]

Figure Q2 D Ii Shows A Clipper Circuit Using Silicon Diodes Figure Q2 D I Is The Input Voltage V Of Figure Q2 D 1 (55.66 KiB) Viewed 34 times

Figure Q2(d)(ii) shows a clipper circuit using silicon diodes. Figure Q2(d)(i) is the input voltage, V₁ of Figure Q2(d)(ii). (i) € Draw simplified circuit for positive and negative cycle. Then calculate the output voltage, V, for both cycle. Sketch the output waveform, V, of the circuit. Vi 5V -5V R1 Vi ΙΚΩ AL Figure Q2(d)(i): Input Signal D1 3V D2 Figure Q2(d)(ii): Clipper Circuit (C3, SP4) [6 marks] (C3, SP4) [3 marks] 1V Vo
