Convert the following time domain quantities of Table (i) into phasors and likewise the phasor in Table (ii) into instan

[answerhappygod]

Convert the following time domain quantities of Table (i) intophasors and likewise the phasor in Table(ii) into instantaneous (functions of time) quantities.

Convert The Following Time Domain Quantities Of Table I Into Phasors And Likewise The Phasor In Table Ii Into Instan 1 (66.82 KiB) Viewed 28 times

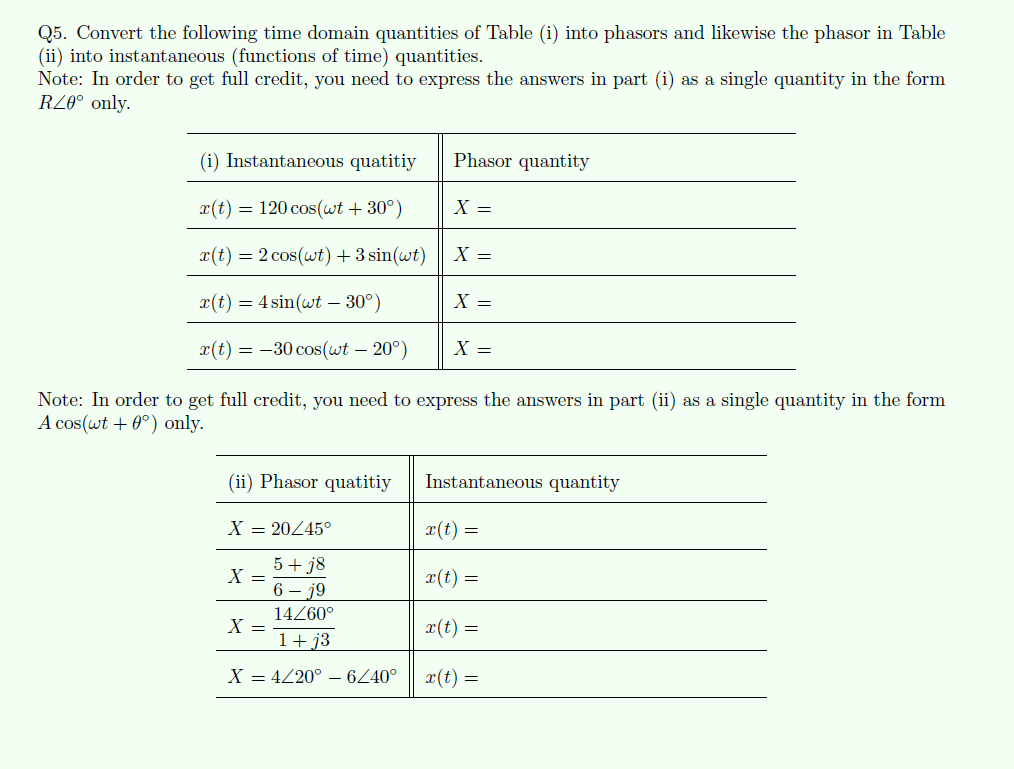

Q5. Convert the following time domain quantities of Table (i) into phasors and likewise the phasor in Table (ii) into instantaneous (functions of time) quantities. Note: In order to get full credit, you need to express the answers in part (i) as a single quantity in the form R/0⁰ only. (i) Instantaneous quatitiy r(t) = 120 cos(wt +30°) r(t) = 2 cos(wt) + 3 sin(wt) x(t) = 4 sin(wt - 30°) x(t) = -30 cos(wt - 20°) Note: In order to get full credit, you need to express the answers in part (ii) as a single quantity in the form A cos(wt + 0°) only. (ii) Phasor quatitiy X = 20/45° 5+j8 6-19 14/60° 1+j3 X = 4/20° -6/40° X = Phasor quantity X = X = X = X = X = Instantaneous quantity x(t) = x(t) = x(t) = x(t) =
