In a Bipolar Junction Transistor (BJT), there are 3 possible modes of operation which are active, saturation and cut-off

Post by answerhappygod »

In A Bipolar Junction Transistor Bjt There Are 3 Possible Modes Of Operation Which Are Active Saturation And Cut Off 1
In A Bipolar Junction Transistor Bjt There Are 3 Possible Modes Of Operation Which Are Active Saturation And Cut Off 1 (57.28 KiB) Viewed 25 times

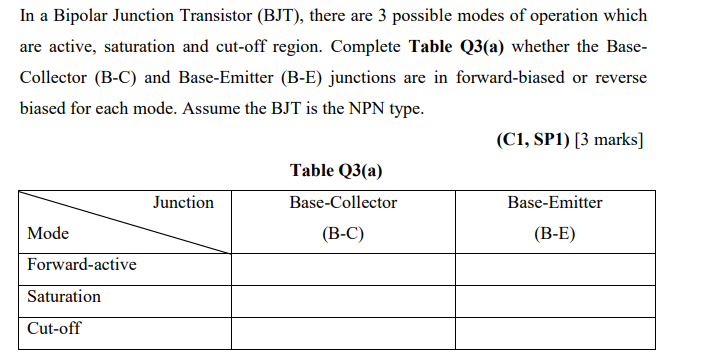

In a Bipolar Junction Transistor (BJT), there are 3 possible modes of operation which are active, saturation and cut-off region. Complete Table Q3(a) whether the Base- Collector (B-C) and Base-Emitter (B-E) junctions are in forward-biased or reverse biased for each mode. Assume the BJT is the NPN type. Mode Forward-active Saturation Cut-off Junction Table Q3(a) Base-Collector (B-C) (C1, SP1) [3 marks] Base-Emitter (B-E)
