For the JFET Configuration in Figure Q4(c), given VDs = - 4V and VDD = 10.7 V. Determine the drop across the drain resis

[answerhappygod]

For The Jfet Configuration In Figure Q4 C Given Vds 4v And Vdd 10 7 V Determine The Drop Across The Drain Resis 1 (82.57 KiB) Viewed 30 times

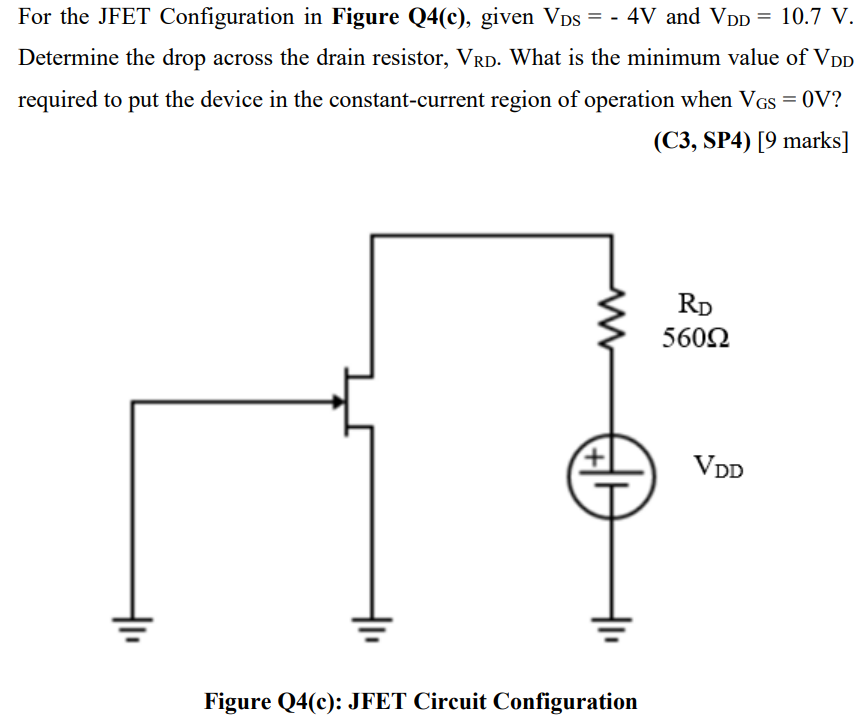

For the JFET Configuration in Figure Q4(c), given VDs = - 4V and VDD = 10.7 V. Determine the drop across the drain resistor, VRD. What is the minimum value of VDD required to put the device in the constant-current region of operation when VGS = OV? (C3, SP4) [9 marks] Figure Q4(c): JFET Circuit Configuration RD 560Ω VDD
