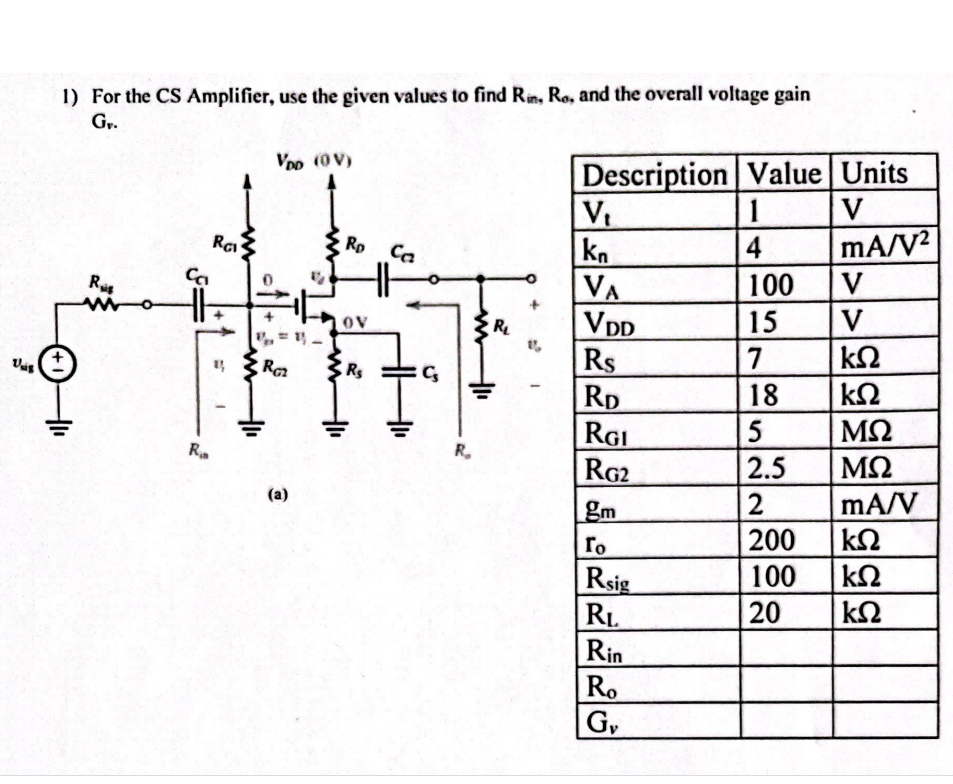

Uus 1) For the CS Amplifier, use the given values to find Rin, Ro, and the overall voltage gain Gy. Rig O Ca Rin RGI VDD

[answerhappygod]

Uus 1 For The Cs Amplifier Use The Given Values To Find Rin Ro And The Overall Voltage Gain Gy Rig O Ca Rin Rgi Vdd 1 (972.13 KiB) Viewed 17 times

Uus 1) For the CS Amplifier, use the given values to find Rin, Ro, and the overall voltage gain Gy. Rig O Ca Rin RGI VDD (OV) Ra (a) P Rp Ca OV R₁ C₂ R₁ +1₁ R₂ 11 I Description Value Units V mA/V² V V ΚΩ ΚΩ ΜΩ ΜΩ mA/V V₁ kn VA VDD Rs RD RGI RG2 gm Го Rsig RL Rin Ro Gy 1 4 100 15 7 18 5 2.5 2 200 100 20 ΚΩ ΚΩ ΚΩ
