QUESTION 4 (a) (b) Give TWO (2) differences and TWO (2) similarities between Field Effect Transistor (FET) and Bipolar J

[answerhappygod]

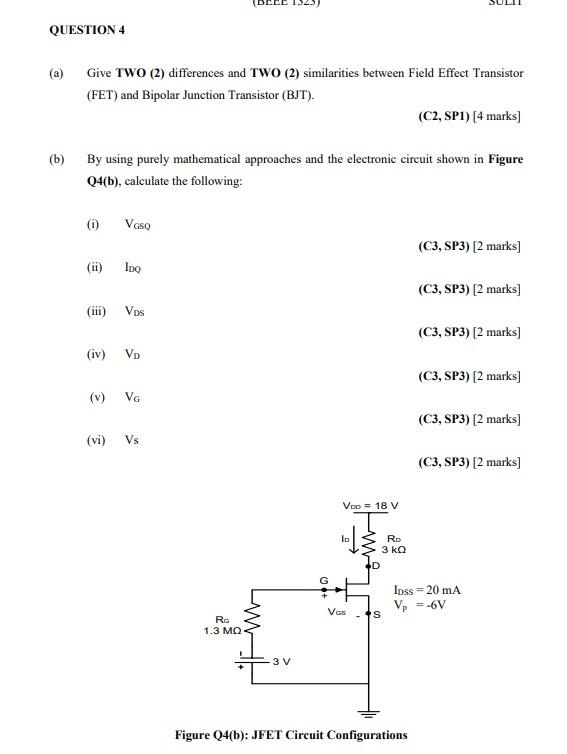

Question 4 A B Give Two 2 Differences And Two 2 Similarities Between Field Effect Transistor Fet And Bipolar J 1 (31.67 KiB) Viewed 26 times

QUESTION 4 (a) (b) Give TWO (2) differences and TWO (2) similarities between Field Effect Transistor (FET) and Bipolar Junction Transistor (BJT). By using purely mathematical approaches and the electronic circuit shown in Figure Q4(b), calculate the following: (i) (ii) (111) (iv) (v) (vi) VGSQ IDQ VDS VD VG Vs RG 1.3 MQ 3 V VoD = 18 V ID Vas s RD 3 ΚΩ (C2, SP1) [4 marks] Figure Q4(b): JFET Circuit Configurations (C3, SP3) [2 marks] (C3, SP3) [2 marks] (C3, SP3) [2 marks] (C3, SP3) [2 marks] (C3, SP3) [2 marks] (C3, SP3) [2 marks] IDss = 20 mA Vp = -6V
