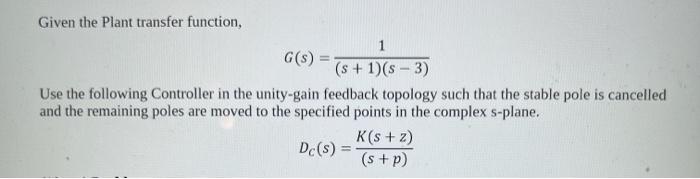

Given the Plant transfer function, G(s) = = 1 (s + 1)(s-3) Use the following Controller in the unity-gain feedback topology such that the stable pole is cancelled and the remaining poles are moved to the specified points in the complex s-plane. Dc(s) = K(s+z) (s + p)

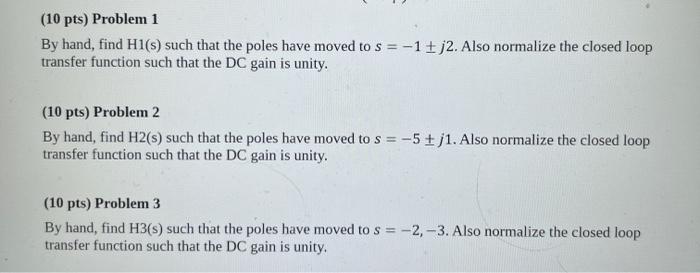

(10 pts) Problem 1 By hand, find H1(s) such that the poles have moved to s= -1 + j2. Also normalize the closed loop transfer function such that the DC gain is unity. (10 pts) Problem 2 By hand, find H2(s) such that the poles have moved to s= -5 +j1. Also normalize the closed loop transfer function such that the DC gain is unity. (10 pts) Problem 3 By hand, find H3(s) such that the poles have moved to s= -2,-3. Also normalize the closed loop transfer function such that the DC gain is unity.
