Problem 1: a. Solve for the Thévenin equivalent resistance, Rth. b. Draw the Thévenin equivalent circuit. c. Draw the No

Post by answerhappygod »

Problem 1 A Solve For The Thevenin Equivalent Resistance Rth B Draw The Thevenin Equivalent Circuit C Draw The No 1
Problem 1 A Solve For The Thevenin Equivalent Resistance Rth B Draw The Thevenin Equivalent Circuit C Draw The No 1 (42.02 KiB) Viewed 29 times

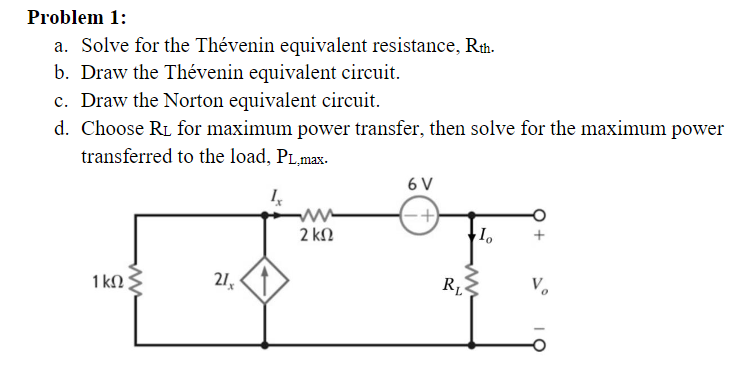

Problem 1: a. Solve for the Thévenin equivalent resistance, Rth. b. Draw the Thévenin equivalent circuit. c. Draw the Norton equivalent circuit. d. Choose RL for maximum power transfer, then solve for the maximum power transferred to the load, PL,max. 1 ΚΩ 21x www 2 ΚΩ 6 V (-+) R₁ lo V₂
