Sketch the Bode diagram of a system whose open-loop transfer function is represented by G(s). 4s + y s² + s +x G(s) = wh

[answerhappygod]

Sketch The Bode Diagram Of A System Whose Open Loop Transfer Function Is Represented By G S 4s Y S S X G S Wh 1 (289.62 KiB) Viewed 34 times

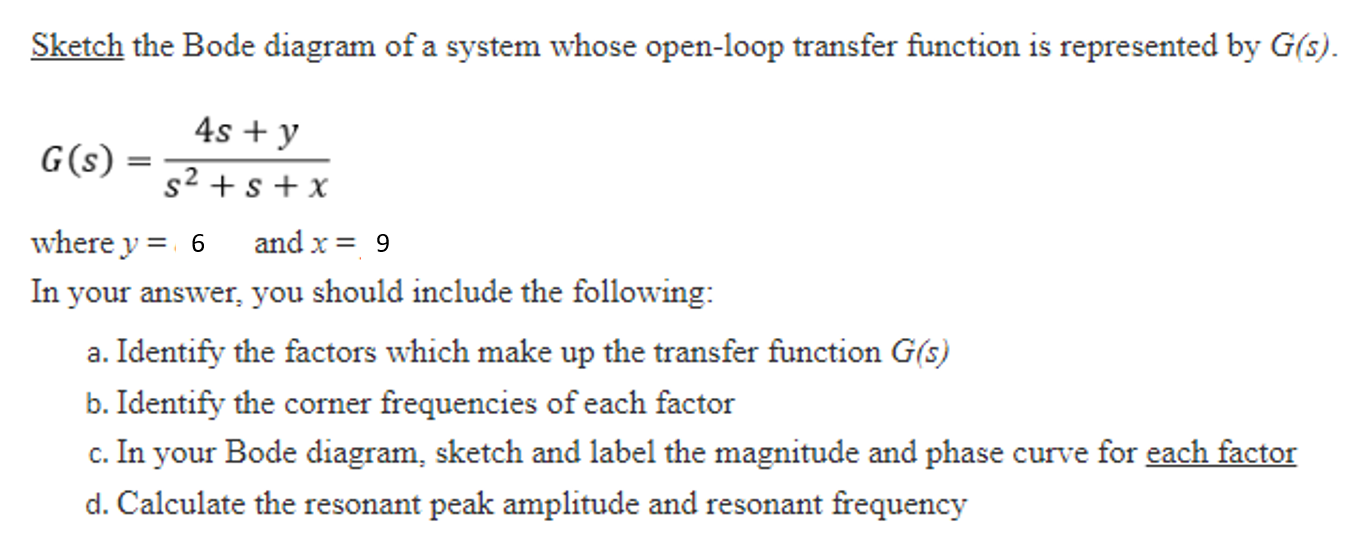

Sketch the Bode diagram of a system whose open-loop transfer function is represented by G(s). 4s + y s² + s +x G(s) = where y = 6 and x = 9 In your answer, you should include the following: a. Identify the factors which make up the transfer function G(s) b. Identify the corner frequencies of each factor c. In your Bode diagram, sketch and label the magnitude and phase curve for each factor d. Calculate the resonant peak amplitude and resonant frequency
