For the network shown, determine (a) the value of the load impedance ZL such that maximum power is delivered to the load

Post by answerhappygod »

For The Network Shown Determine A The Value Of The Load Impedance Zl Such That Maximum Power Is Delivered To The Load 1
For The Network Shown Determine A The Value Of The Load Impedance Zl Such That Maximum Power Is Delivered To The Load 1 (42.96 KiB) Viewed 52 times

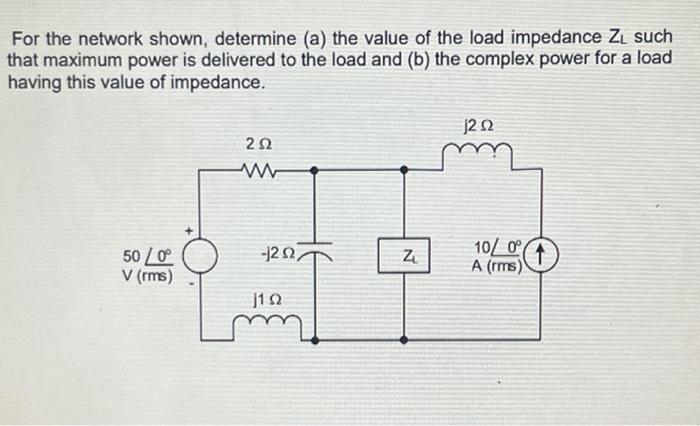

For the network shown, determine (a) the value of the load impedance ZL such that maximum power is delivered to the load and (b) the complex power for a load having this value of impedance. 50/0⁰ V (rms) 202 -1227 j192 Z j202 10/0° A (rms) ↑
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
