Consider the following sinusoidal steady-state circuit, with voltage source vi(t) = cos(2t) and output voltage vo(t). If

Post by answerhappygod »

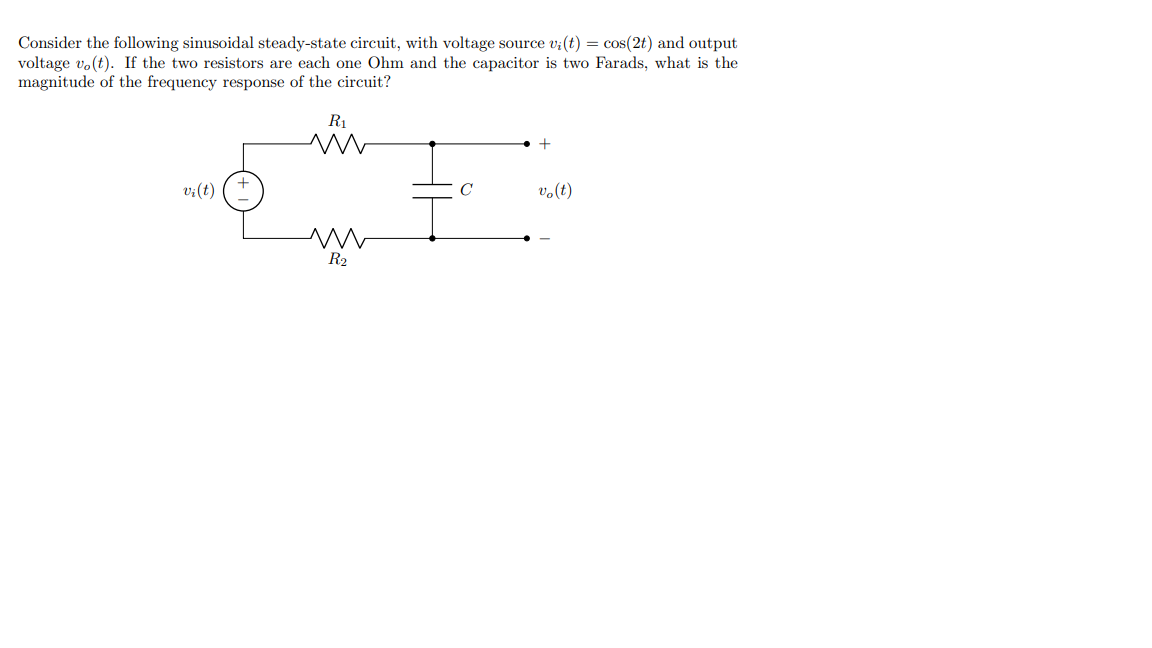

Consider The Following Sinusoidal Steady State Circuit With Voltage Source Vi T Cos 2t And Output Voltage Vo T If 1
Consider The Following Sinusoidal Steady State Circuit With Voltage Source Vi T Cos 2t And Output Voltage Vo T If 1 (27.01 KiB) Viewed 50 times
Consider the following sinusoidal steady-state circuit, with voltage source vi(t) = cos(2t) and output voltage vo(t). If the two resistors are each one Ohm and the capacitor is two Farads, what is the magnitude of the frequency response of the circuit? vi(t) R₁ m ww R₂ C + vo(t)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
