Q4B. Use impedance matching network shown below to match the generator and load. In the given circuit: Rg = 500, R₁ = 50

Post by answerhappygod »

Q4b Use Impedance Matching Network Shown Below To Match The Generator And Load In The Given Circuit Rg 500 R 50 1
Q4b Use Impedance Matching Network Shown Below To Match The Generator And Load In The Given Circuit Rg 500 R 50 1 (22.17 KiB) Viewed 30 times

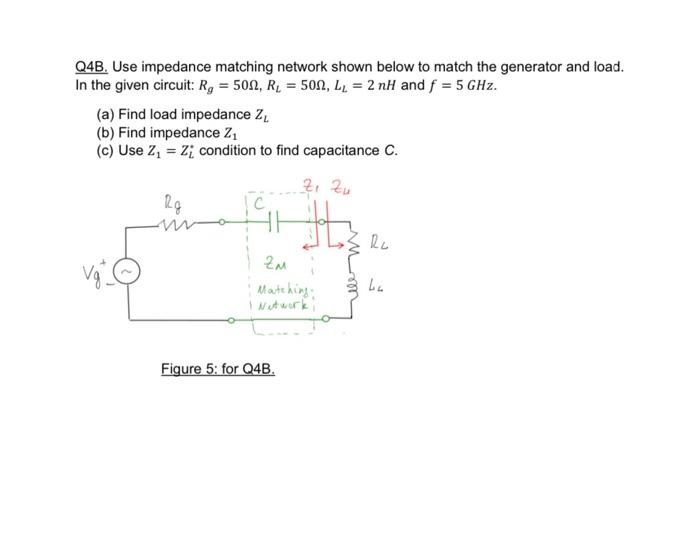

Q4B. Use impedance matching network shown below to match the generator and load. In the given circuit: Rg = 500, R₁ = 500, L₁= 2 nH and f = 5 GHz. (a) Find load impedance Z₁ (b) Find impedance Z₁ (c) Use Z₁ = Z₂ condition to find capacitance C. Rg Z₁ Zu It's ZM Matching. 1 Network, Figure 5: for Q4B. Ru Lu
