Q4B. Use impedance matching network shown below to match the generator and load. In the given circuit: R₂ = 500, R₂ = 50

Post by answerhappygod »

Q4b Use Impedance Matching Network Shown Below To Match The Generator And Load In The Given Circuit R 500 R 50 1
Q4b Use Impedance Matching Network Shown Below To Match The Generator And Load In The Given Circuit R 500 R 50 1 (42.93 KiB) Viewed 21 times
please help me with this problem

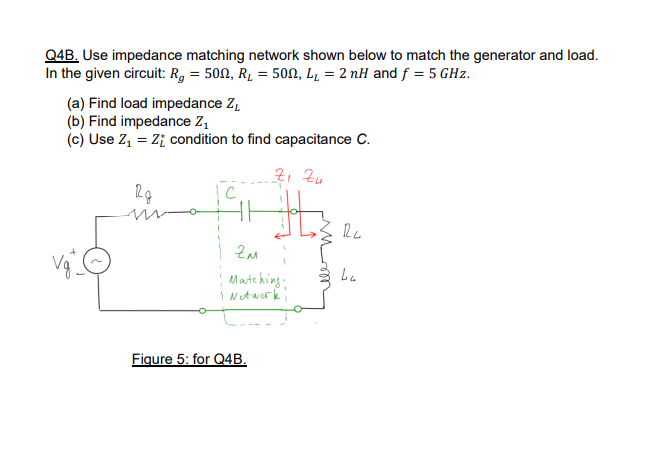

Q4B. Use impedance matching network shown below to match the generator and load. In the given circuit: R₂ = 500, R₂ = 500, L₁= 2 nH and f = 5 GHz. (a) Find load impedance Z₁ (b) Find impedance Z₁ (c) Use Z₁ = Z; condition to find capacitance C. Rg m Z₁ Zu C Fritz ZM Matching: I Network' Figure 5: for Q4B. Ru ܝܐ
