please help me with this problem

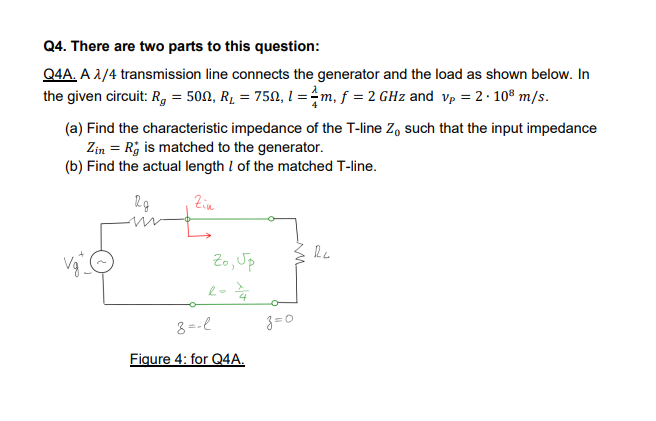

Q4. There are two parts to this question: Q4A. A 2/4 transmission line connects the generator and the load as shown below. In the given circuit: R = 50N, R₁ = 75N, 1 = ¼m, f = 2 GHz and vp = 2.10⁹ m/s. (a) Find the characteristic impedance of the T-line Zo such that the input impedance Zin = Rg is matched to the generator. (b) Find the actual length of the matched T-line. Од Ziu Zo, Up 2= 14 8=-l Figure 4: for Q4A. o Ru
