Q4. A three-phase, 400 V/1Z kV Y-D connected transformer is protected by differential protection [4+2] scheme. The CTs o

Post by answerhappygod »

Q4 A Three Phase 400 V 1z Kv Y D Connected Transformer Is Protected By Differential Protection 4 2 Scheme The Cts O 1
Q4 A Three Phase 400 V 1z Kv Y D Connected Transformer Is Protected By Differential Protection 4 2 Scheme The Cts O 1 (24.53 KiB) Viewed 19 times
Z=8

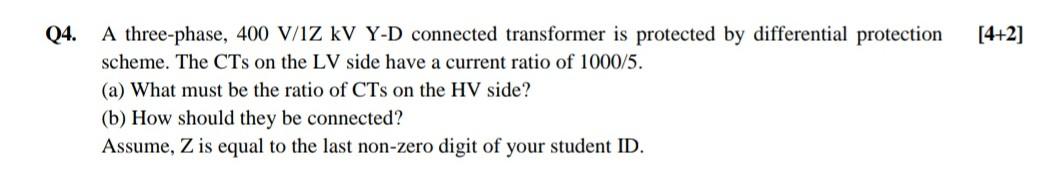

Q4. A three-phase, 400 V/1Z kV Y-D connected transformer is protected by differential protection [4+2] scheme. The CTs on the LV side have a current ratio of 1000/5. (a) What must be the ratio of CTs on the HV side? (b) How should they be connected? Assume, Z is equal to the last non-zero digit of your student ID.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
