3. If the image shown in Figure 4 represents a transverse magnetic wave, label the three vectors shown with solid filled

[answerhappygod]

3 If The Image Shown In Figure 4 Represents A Transverse Magnetic Wave Label The Three Vectors Shown With Solid Filled 1 (117.08 KiB) Viewed 40 times

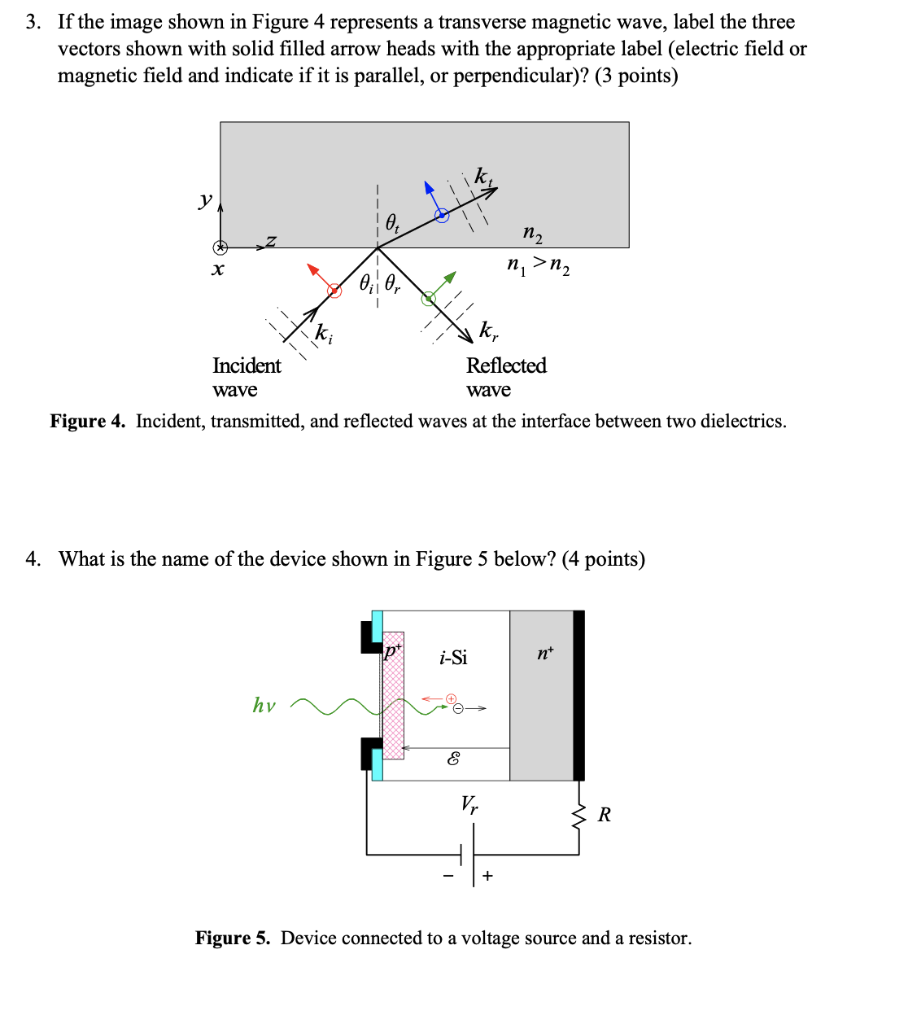

3. If the image shown in Figure 4 represents a transverse magnetic wave, label the three vectors shown with solid filled arrow heads with the appropriate label (electric field or magnetic field and indicate if it is parallel, or perpendicular)? (3 points) y X Incident wave 0₁ Or Reflected wave Figure 4. Incident, transmitted, and reflected waves at the interface between two dielectrics. hv 4. What is the name of the device shown in Figure 5 below? (4 points) n₂ n₁ >n₂ i-Si E nº R Figure 5. Device connected to a voltage source and a resistor.
