Ec EF- E, (a) Ec EF E, Ec EF- E, Ec EF E, Ec EF E, (b) Figure 2. Energy band diagrams of a pn-junction. b. Figure 2 (b)

Post by answerhappygod »

Ec Ef E A Ec Ef E Ec Ef E Ec Ef E Ec Ef E B Figure 2 Energy Band Diagrams Of A Pn Junction B Figure 2 B 1
Ec Ef E A Ec Ef E Ec Ef E Ec Ef E Ec Ef E B Figure 2 Energy Band Diagrams Of A Pn Junction B Figure 2 B 1 (48.77 KiB) Viewed 30 times

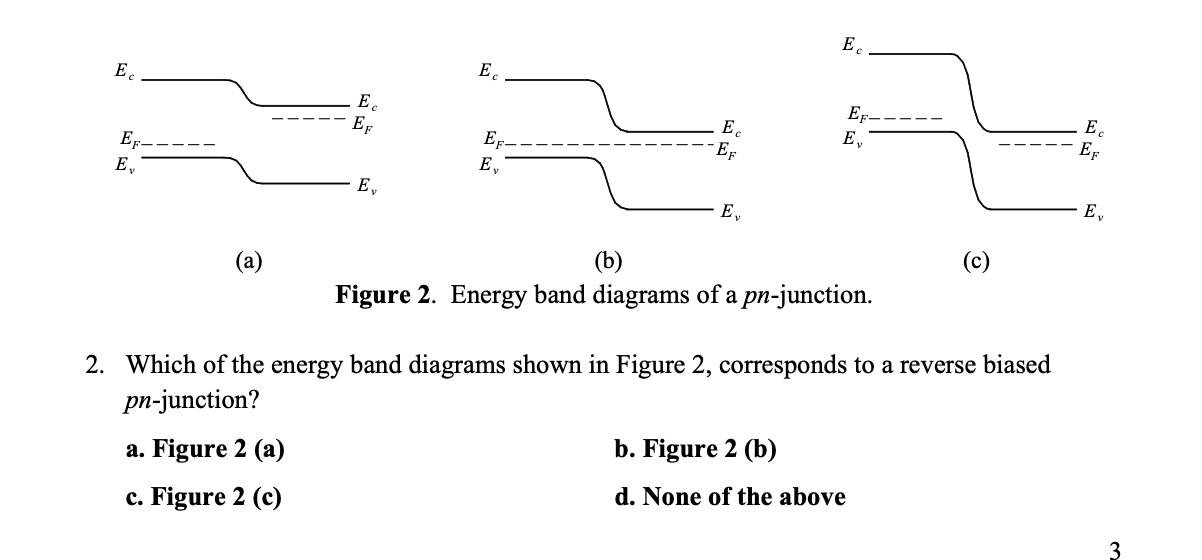

Ec EF- E, (a) Ec EF E, Ec EF- E, Ec EF E, Ec EF E, (b) Figure 2. Energy band diagrams of a pn-junction. b. Figure 2 (b) d. None of the above @ 2. Which of the energy band diagrams shown in Figure 2, corresponds to a reverse biased pn-junction? a. Figure 2 (a) c. Figure 2 (c) Ec EF E 3
3. If the effective mass of electrons in the conduction band are less than the effective mass of holes in the valence band, then where will the Fermi level be located for an intrinsic semiconductor? a. Exactly at the middle of the bandgap c. Below the middle of the bandgap b. Above the middle of the bandgap d. At the edge of the conduction band
