[25pts] 4. AC power Consider the following AC circuit in the frequency domain. You primarily care about the parameters r

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

[25pts] 4. AC power Consider the following AC circuit in the frequency domain. You primarily care about the parameters r

Post by answerhappygod »

25pts 4 Ac Power Consider The Following Ac Circuit In The Frequency Domain You Primarily Care About The Parameters R 1
25pts 4 Ac Power Consider The Following Ac Circuit In The Frequency Domain You Primarily Care About The Parameters R 1 (37.57 KiB) Viewed 36 times

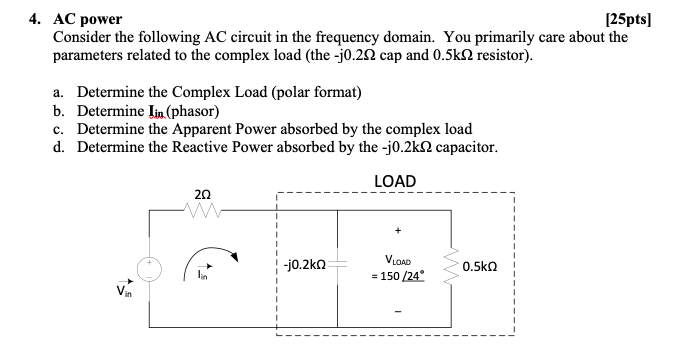

[25pts] 4. AC power Consider the following AC circuit in the frequency domain. You primarily care about the parameters related to the complex load (the-j0.292 cap and 0.5ks resistor). a. Determine the Complex Load (polar format) b. Determine Lin. (phasor) c. Determine the Apparent Power absorbed by the complex load d. Determine the Reactive Power absorbed by the -j0.2k2 capacitor. LOAD Vin 5 202 -j0.2ΚΩ VLOAD = 150/24° 0.5kQ
