QUESTION 5 In the circuit below, find the amplitude of the output if the amplitude of Vin is 700 mV, R1 = 1k Ohms and R2

[answerhappygod]

Question 5 In The Circuit Below Find The Amplitude Of The Output If The Amplitude Of Vin Is 700 Mv R1 1k Ohms And R2 1 (76.47 KiB) Viewed 23 times

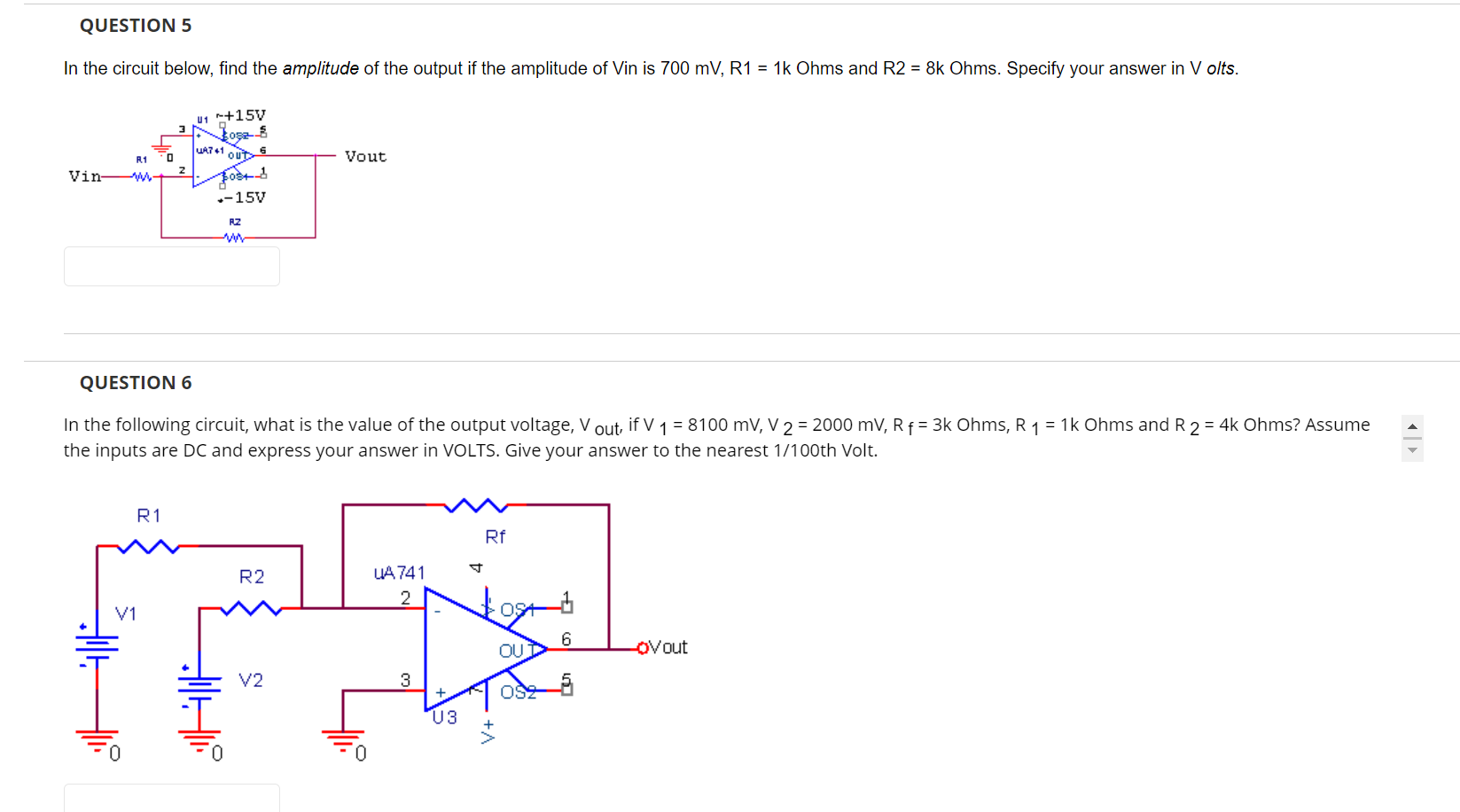

QUESTION 5 In the circuit below, find the amplitude of the output if the amplitude of Vin is 700 mV, R1 = 1k Ohms and R2 = 8k Ohms. Specify your answer in V olts. R1 0 Vin- www. R1 U₁ +15V WAP 41 OUT V1 Fost 1 .-15V RZ QUESTION 6 In the following circuit, what is the value of the output voltage, V out, if V 1 = 8100 mV, V 2 = 2000 mV, R f = 3k Ohms, R 1 = 1k Ohms and R 2 = 4k Ohms? Assume the inputs are DC and express your answer in VOLTS. Give your answer to the nearest 1/100th Volt. 0 R2 Vout V2 0 UA 741 2 3 U3 Rf Jos OUT OS2 6 OVout
