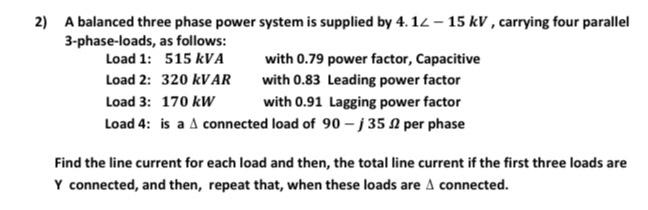

2) A balanced three phase power system is supplied by 4.12-15 kV, carrying four parallel 3-phase-loads, as follows: Load

[answerhappygod]

2 A Balanced Three Phase Power System Is Supplied By 4 12 15 Kv Carrying Four Parallel 3 Phase Loads As Follows Load 1 (21.28 KiB) Viewed 29 times

2) A balanced three phase power system is supplied by 4.12-15 kV, carrying four parallel 3-phase-loads, as follows: Load 1: 515 kVA Load 2: 320 kVAR Load 3: 170 kW with 0.79 power factor, Capacitive with 0.83 Leading power factor with 0.91 Lagging power factor Load 4: is a A connected load of 90 -j 35 22 per phase Find the line current for each load and then, the total line current if the first three loads are Y connected, and then, repeat that, when these loads are A connected.
