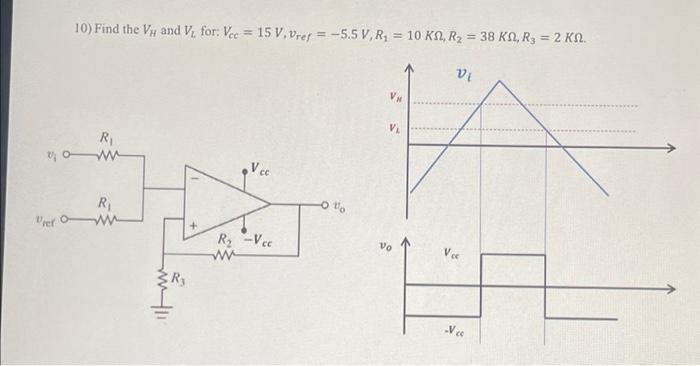

10) Find the VH and V₁ for: Vcc= 15 V, Vref= -5.5 V, R₁ = 10 K, R₂ = 38 KM, R₂ = 2 kn. vo Vref R₁ R₁ Vec R₂ -Vec % VH V₁
