1) Carry out a mesh analysis of each circuit d indicating the name of the meshes, direction of currents, name of the cur

[answerhappygod]

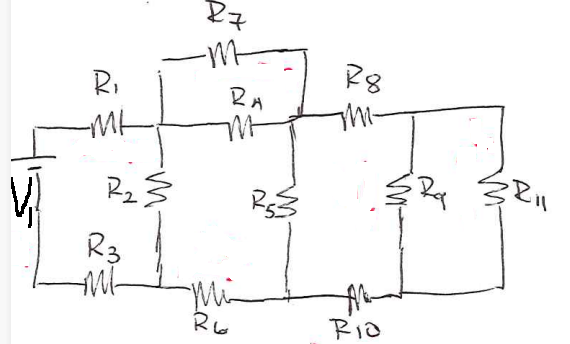

1) Carry out a mesh analysis of each circuit d indicating thename of the meshes, direction ofcurrents, name of the currents, general equations of each mesh, itsdevelopment and above all its minimum possible expression.2) The analysis of nodes of each of the circuits must be carriedout in an orderly manner, indicating the name of each node,direction ofcurrents, name of the currents, general equations of each mesh, itsdevelopment and above all its minimum possible expression.3). Finally, you must find all the powers in each of the circuits,for the resistors R3,R6, R8, R10, R1

1 Carry Out A Mesh Analysis Of Each Circuit D Indicating The Name Of The Meshes Direction Of Currents Name Of The Cur 1 (75.27 KiB) Viewed 24 times

R₁ -M² R₂ R3 MI- 87 -M- RA ний R6 R R8 MM- RIO
