3. (15 points) Given a feedback control system below K(s+2) (s+20) 1 (s+10) (s²+25+2) (a) (10 points) Draw Root Locus Di

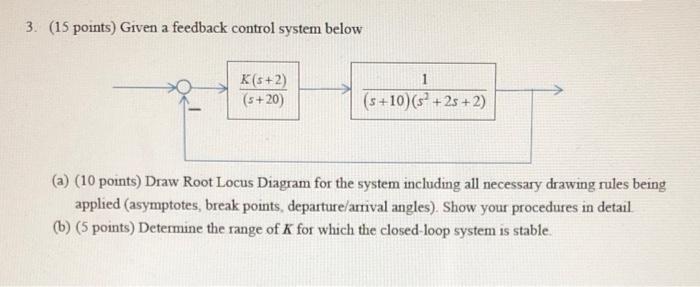

3. (15 points) Given a feedback control system below K(s+2) (s+20) 1 (s+10) (s²+25+2) (a) (10 points) Draw Root Locus Diagram for the system including all necessary drawing rules being applied (asymptotes, break points, departure/arrival angles). Show your procedures in detail. (b) (5 points) Determine the range of K for which the closed-loop system is stable.
