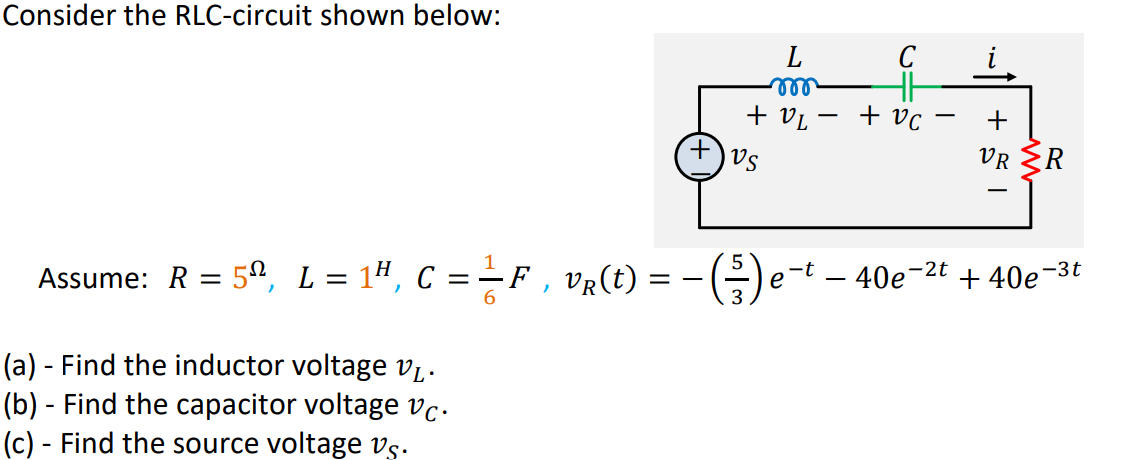

Consider the RLC-circuit shown below: L m + VL (a) - Find the inductor voltage VL. (b) - Find the capacitor voltage vc.
