Determine the 3 dB frequencies for , and for the following circuit. The circuit parameters are as follows:

[answerhappygod]

Determine the 3 dB frequencies for, and for the followingcircuit.
The circuit parameters are as follows:

Determine The 3 Db Frequencies For And For The Following Circuit The Circuit Parameters Are As Follows 1 (399.41 KiB) Viewed 21 times

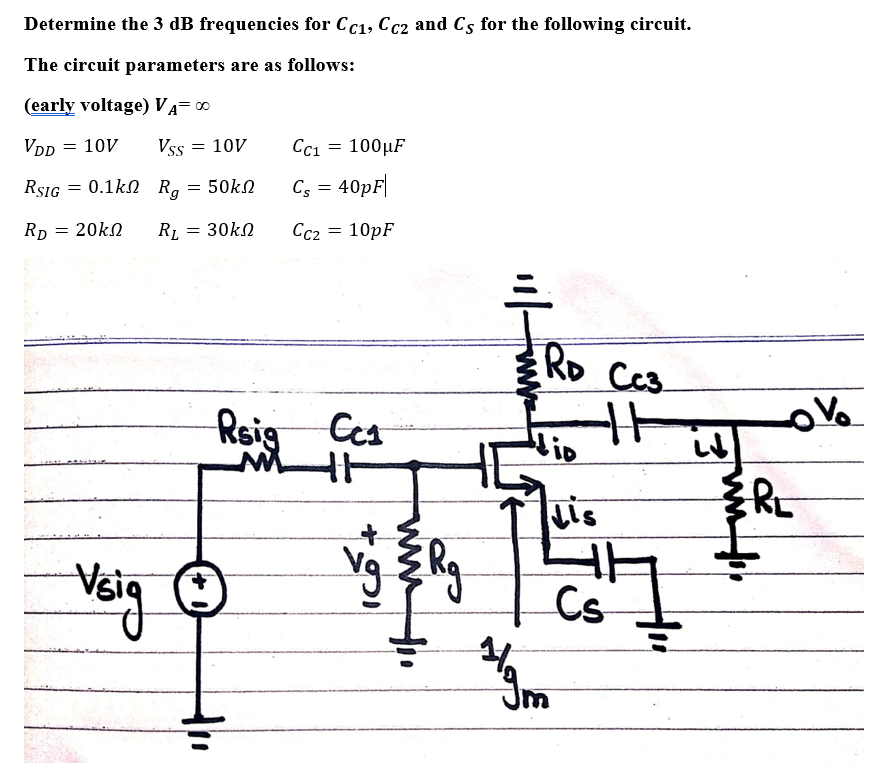

Determine the 3 dB frequencies for Cc1, Cc2 and Cs for the following circuit. The circuit parameters are as follows: (early voltage) VA=∞ VDD = 10V Vss = 10V Rg RSIG= 0.1kn RD = 20kn Vsig RL = 50ΚΩ = 30kn CC1 Cs = 40pF| Cc2= 10pF = 100μF Rsig Cc₁ M 11 Vg & Rg RD CC3 | Lis HE Cs 4/9m Im oble RE Vo
