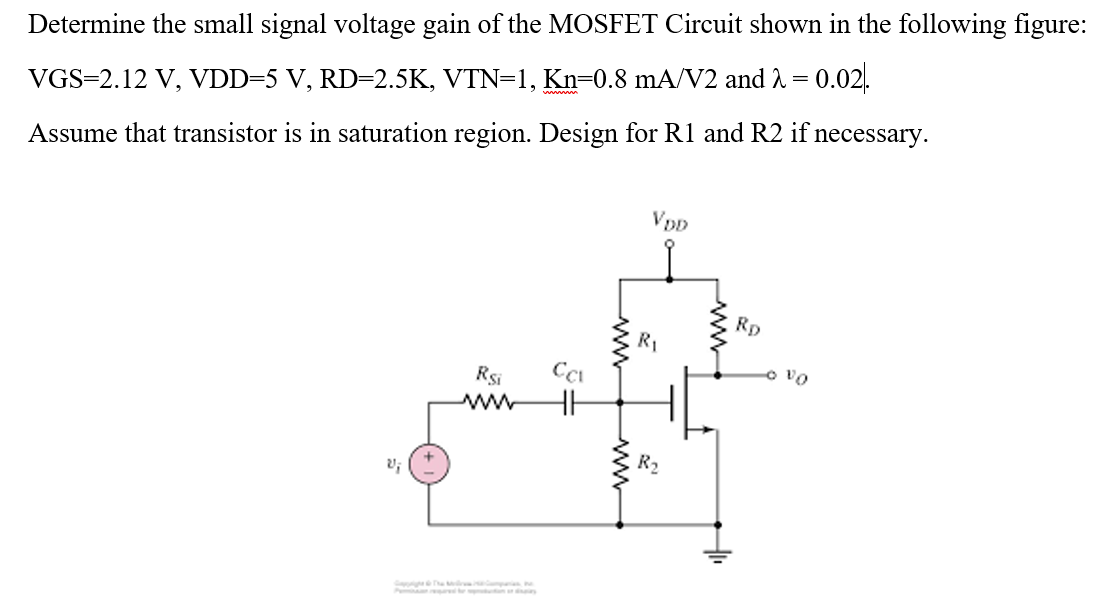

Determine the small signal voltage gain of the MOSFET Circuitshown in the following figure:
VGS=2.12 V, VDD=5 V, RD=2.5K, VTN=1, Kn=0.8 mA/V2 and λ =0.02.
Assume that transistor is in saturation region. Design for R1and R2 if necessary.
Determine The Small Signal Voltage Gain Of The Mosfet Circuit Shown In The Following Figure Vgs 2 12 V Vdd 5 V Rd 2 5 1 (53.2 KiB) Viewed 26 times
Determine the small signal voltage gain of the MOSFET Circuit shown in the following figure: VGS=2.12 V, VDD=5 V, RD=2.5K, VTN=1, Kn=0.8 mA/V2 and λ = 0.02. Assume that transistor is in saturation region. Design for R1 and R2 if necessary. v; Rsi CCI HH www VDD RD vo
