Problem 10: a. Solve for the Thévenin equivalent resistance, Rth. b. Draw the Thévenin equivalent circuit. c. Draw the N

Post by answerhappygod »

Problem 10 A Solve For The Thevenin Equivalent Resistance Rth B Draw The Thevenin Equivalent Circuit C Draw The N 1
Problem 10 A Solve For The Thevenin Equivalent Resistance Rth B Draw The Thevenin Equivalent Circuit C Draw The N 1 (228.91 KiB) Viewed 41 times

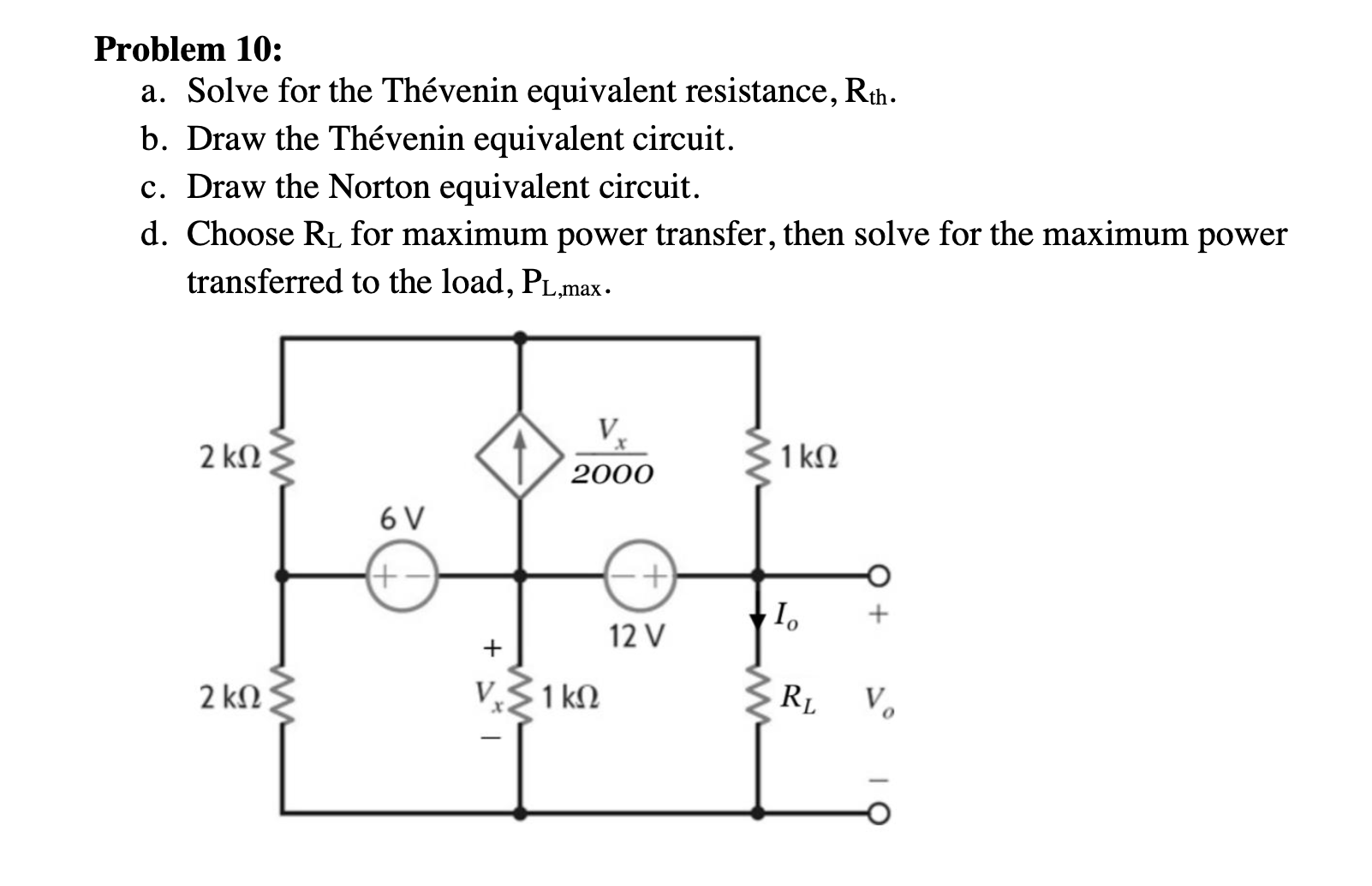

Problem 10: a. Solve for the Thévenin equivalent resistance, Rth. b. Draw the Thévenin equivalent circuit. c. Draw the Norton equivalent circuit. d. Choose R₁ for maximum power transfer, then solve for the maximum power transferred to the load, PL,max. 2 ΚΩ 2 ΚΩ www www 6V (+-) + V V₂ 2000 1 ΚΩ 12 V 1ΚΩ Io www RL Vo
