In the simulation, the closed-loop dominant poles of uncompensated and PID 64435 compensated system is located at -0.727

Post by answerhappygod »

In The Simulation The Closed Loop Dominant Poles Of Uncompensated And Pid 64435 Compensated System Is Located At 0 727 1
In The Simulation The Closed Loop Dominant Poles Of Uncompensated And Pid 64435 Compensated System Is Located At 0 727 1 (21.8 KiB) Viewed 64 times

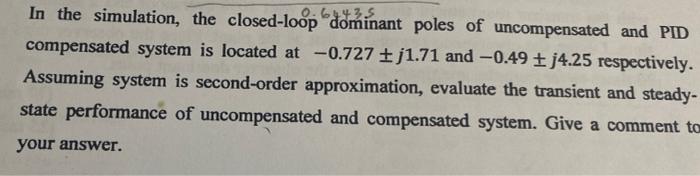

In the simulation, the closed-loop dominant poles of uncompensated and PID 64435 compensated system is located at -0.727 ±j1.71 and -0.49±j4.25 respectively. Assuming system is second-order approximation, evaluate the transient and steady- state performance of uncompensated and compensated system. Give a comment to your answer.
