1.- In the circuit shown in Figure No. 1, the parameters of the silicon transistor are B = 80 and va = ∞ .... (λ = 0) a)

Post by answerhappygod »

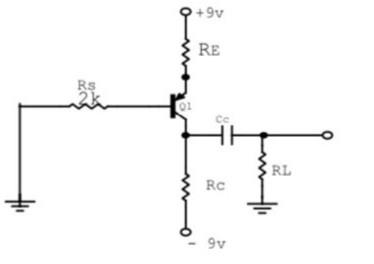

1.-In the circuit shown in Figure No. 1, the parameters of the silicon transistor areB = 80 and va = ∞ .... (λ = 0)a) King determine of que iq = 0.75 mA.b) and then with the values ​​obtained determine RC in such a way that neighbor= 7 V
1
1 (5.74 KiB) Viewed 28 times
Rs 2k 01 +9v RE Ce HI Rc 9v RL
