Problem 2.69 Find the Thévenin equivalent resistance seen by R in Figure P2.69. Compute the Thévenin (open-circuit) volt

[answerhappygod]

Problem 2 69 Find The Thevenin Equivalent Resistance Seen By R In Figure P2 69 Compute The Thevenin Open Circuit Volt 1 (73.42 KiB) Viewed 32 times

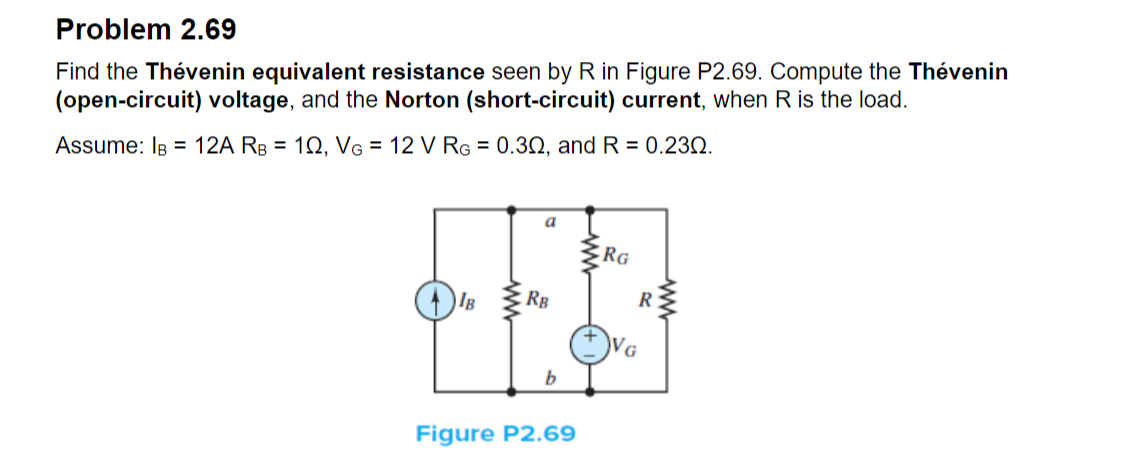

Problem 2.69 Find the Thévenin equivalent resistance seen by R in Figure P2.69. Compute the Thévenin (open-circuit) voltage, and the Norton (short-circuit) current, when R is the load. Assume: IB 12A RB = 102, VG = 12 V RG = 0.30, and R = 0.230. IB a RB b Figure P2.69 RG VG R www
