- 4 Assume The Following Data From The Zener Diode Datasheet Zener Knee Current 0 25ma Zener Max Current 100ma And M 1 (118.16 KiB) Viewed 33 times
- 4 Assume The Following Data From The Zener Diode Datasheet Zener Knee Current 0 25ma Zener Max Current 100ma And M 2 (34.11 KiB) Viewed 33 times

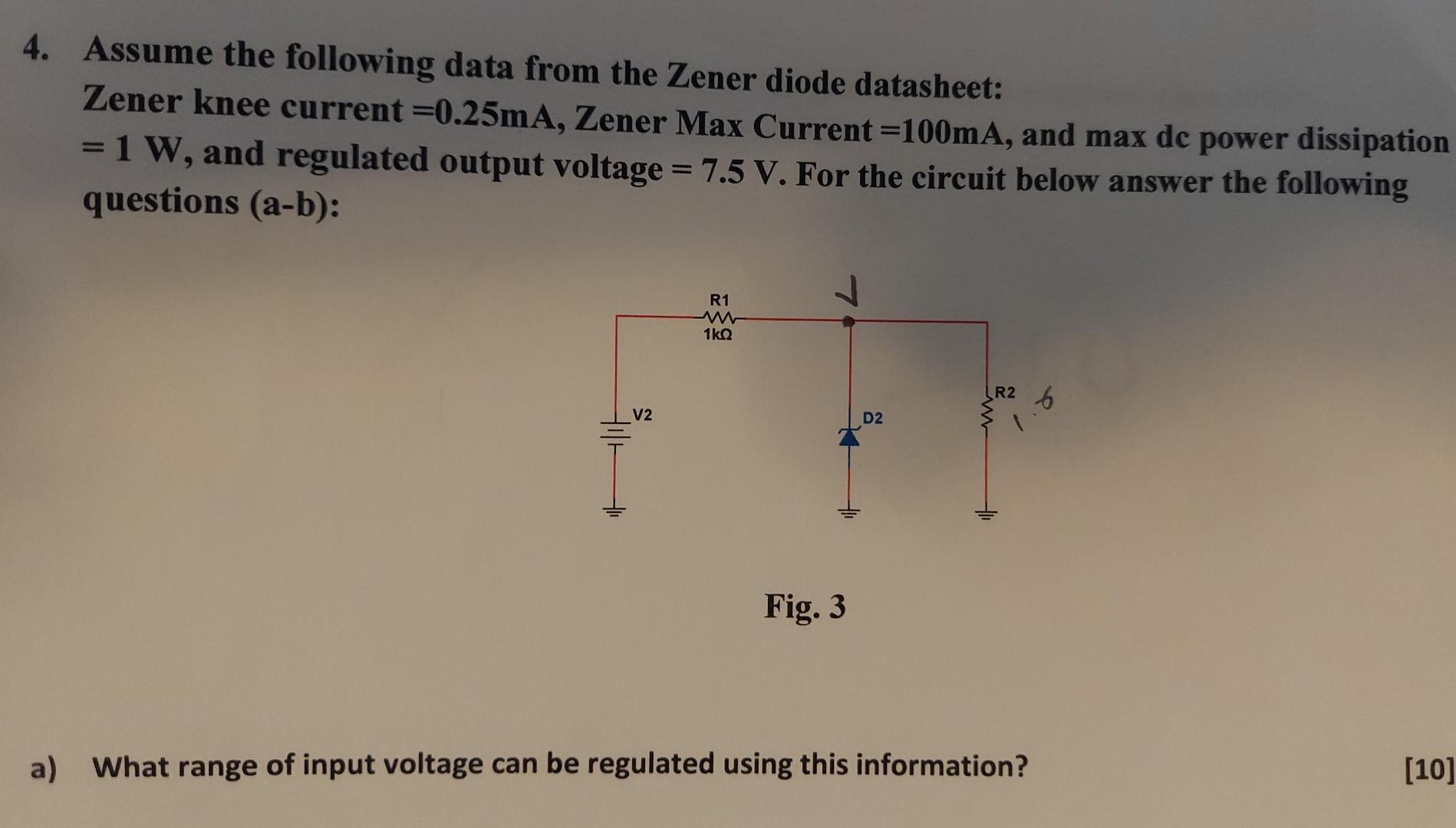

4. Assume the following data from the Zener diode datasheet: Zener knee current = 0.25mA, Zener Max Current=100mA, and max de power dissipation 1 W, and regulated output voltage = 7.5 V. For the circuit below answer the following questions (a-b): a) V2 R1 1kQ Fig. 3 D2 R2 What range of input voltage can be regulated using this information? 6 [10]

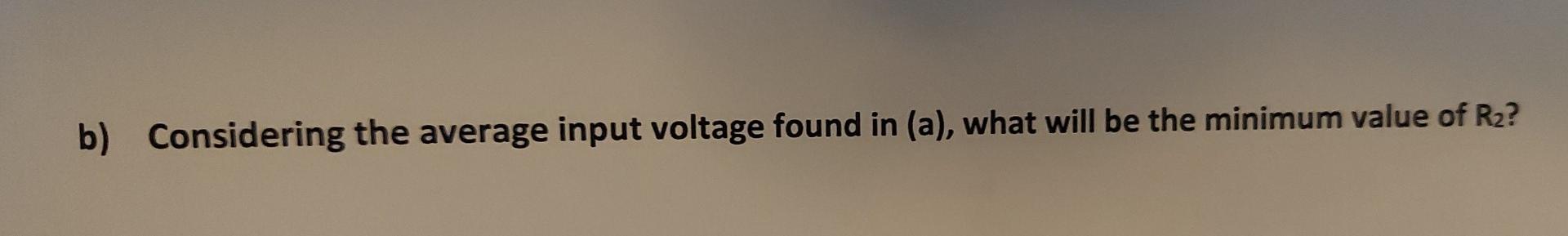

b) Considering the average input voltage found in (a), what will be the minimum value of R₂?
