6. In the Figure below, calculate the minimum coupling capacitance, Co, in series with the 20000 resistance, R, if the f

[answerhappygod]

6 In The Figure Below Calculate The Minimum Coupling Capacitance Co In Series With The 20000 Resistance R If The F 1 (19.04 KiB) Viewed 52 times

6 In The Figure Below Calculate The Minimum Coupling Capacitance Co In Series With The 20000 Resistance R If The F 2 (47.36 KiB) Viewed 52 times

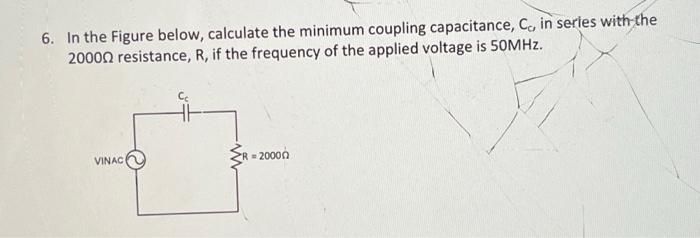

6. In the Figure below, calculate the minimum coupling capacitance, Co, in series with the 20000 resistance, R, if the frequency of the applied voltage is 50MHz. 57- = 20000 VINAC

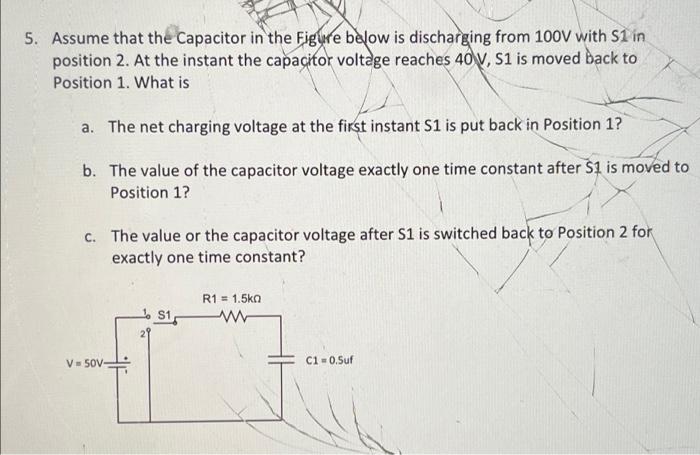

5. Assume that the Capacitor in the Figure below is discharging from 100V with S1 in position 2. At the instant the capacitor voltage reaches 40 V, S1 is moved back to Position 1. What is a. The net charging voltage at the first instant S1 is put back in Position 1? b. The value of the capacitor voltage exactly one time constant after S1 is moved to Position 1? c. The value or the capacitor voltage after S1 is switched back to Position 2 for exactly one time constant? V 50V- S1 R1 = 1.5k0 www C1=0.5uf
