i have the data from below
The variables that are to be measured and thus selected in theDMS2 software are:- the three phase-to-neutral voltages (AC1V, AC2V, AC3V)- the three line currents (AC1A, AC2A, AC3A)- real powers of the first two phases (AC1W, AC2W)- power factors of the first two phases (AC1PF, AC2PF)- speed (SPEED) and torque (TORQUE).Additionally, after the lab session, four more parameters are to bedefined by the userand calculated using spread sheet software (Excel). These are:input power Pin = 3x(AC1W+AC2W)/2, output power (Pout) and slip. there areonly 3 ??

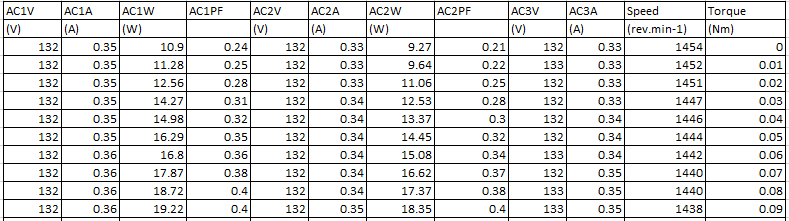

- Calculate Input Power Output Power Pout And Slip I Have The Data From Below The Variables That Are To Be Measured An 1 (16.78 KiB) Viewed 67 times
AC1V |(V) 3 132 132 132 132 132 132 132 132 132 132 AC1A (A) 0.35 0.35 0.35 0.35 0.35 0.35 0.36 0.36 0.36 0.36 AC1W (W) 10.9 11.28 12.56 14.27 14.98 16.29 16.8 17.87 18.72 19.22 AC1PF 0.24 0.25 0.28 0.31 0.32 0.35 0.36 0.38 0.4 0.4 AC2V (V) 132 132 132 132 132 132 132 132 132 132 AC2A (A) 0.33 0.33 0.33 0.34 0.34 0.34 0.34 0.34 0.34 0.35 AC2W (W) 9.27 9.64 11.06 12.53 13.37 14.45 15.08 16.62 17.37 18.35 AC2PF 0.21 0.22 0.25 0.28 0.3 0.32 0.34 0.37 0.38 0.4 AC3V (V) 132 133 132 132 132 132 133 132 133 133 AC3A (A) 0.33 0.33 0.33 0.33 0.34 0.34 0.34 0.35 0.35 0.35 Speed (rev.min-1) (Nm) 1454 1452 1451 1447 1446 1444 1442 1440 1440 1438 Torque 0 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09
