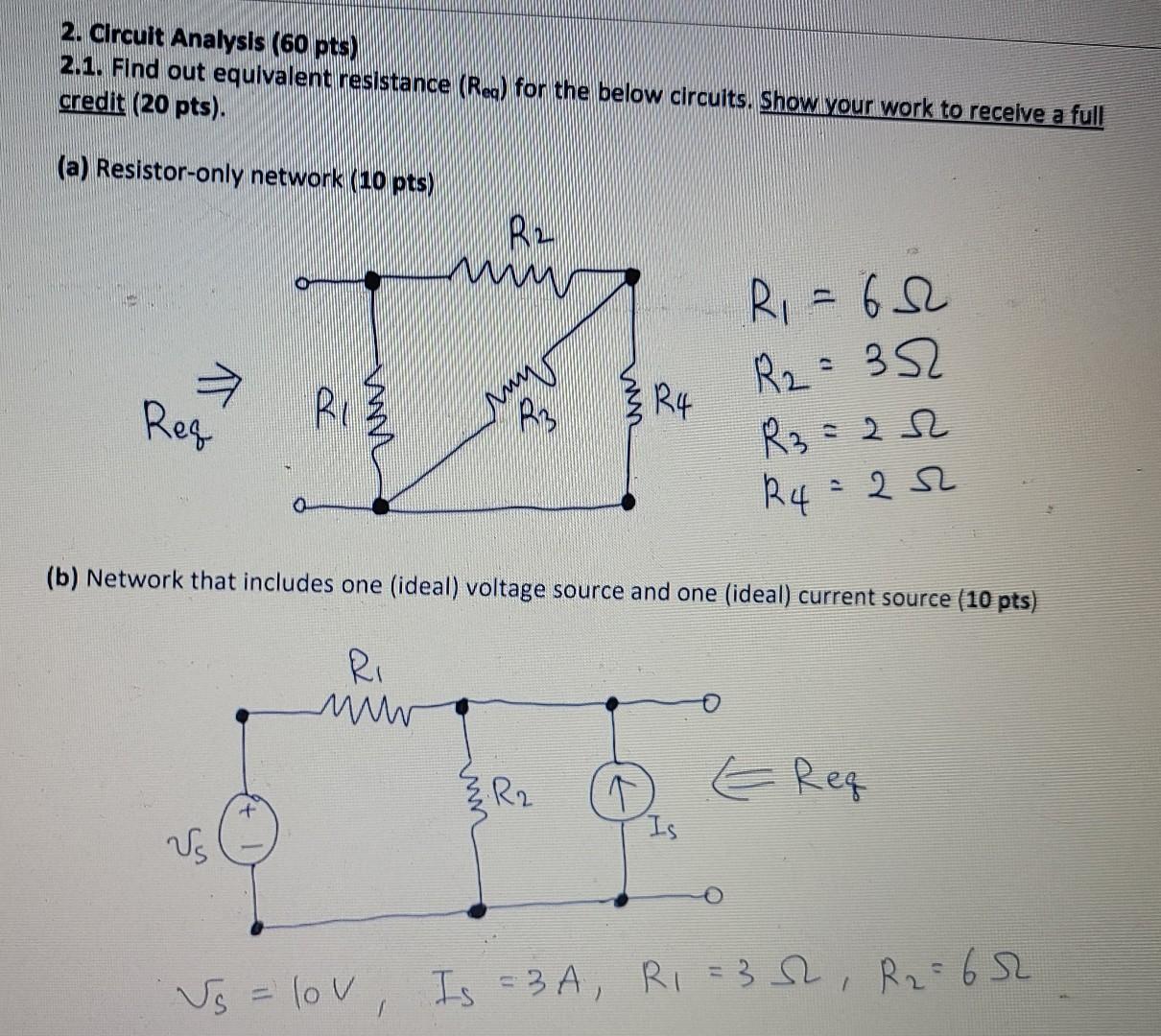

2. Circuit Analysis (60 pts) 2.1. Find out equivalent resistance (Rea) for the below circuits. Show your work to receive a full credit (20 pts). (a) Resistor-only network (10 pts) Reg RIZ υς R₂ www Ri www лим R3 un R4 (b) Network that includes one (ideal) voltage source and one (ideal) current source (10 pts) R₂ R₁ = 652 R₂ = 352 Is R3=252 = 252 R4 ← Req Vs = lov, Is = 3A, R₁ = 3 52, R₂ = 652
