- 2 Circuit Analysis 60 Pts 2 1 Find Out Equivalent Resistance Rea For The Below Circuits Show Your Work To Receive 1 (36.27 KiB) Viewed 44 times
2. Circuit Analysis (60 pts) 2.1. Find out equivalent resistance (Rea) for the below circuits. Show your work to receive
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
2. Circuit Analysis (60 pts) 2.1. Find out equivalent resistance (Rea) for the below circuits. Show your work to receive

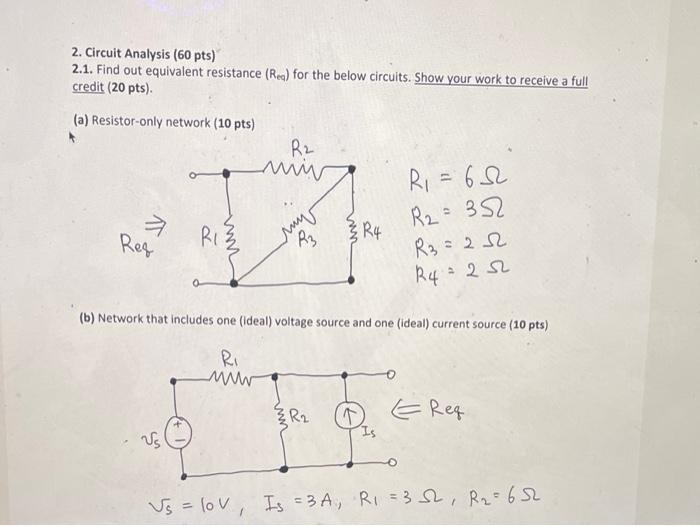

2. Circuit Analysis (60 pts) 2.1. Find out equivalent resistance (Rea) for the below circuits. Show your work to receive a full credit (20 pts). (a) Resistor-only network (10 pts) ㅋ RIZ Vs R₂ www my R3 um 3R2 R₂ R4 (b) Network that includes one (ideal) voltage source and one (ideal) current source (10 pts) Ri www R₁ = 652 R₂ = 352 R3 = 252 R4 = 252 ← Reg Vs = lov, Is =3A, R₁ = 3 52, R₂ = 652
