R(s) T T Ko D(s) G₂OH(S) G(S) H(s) Q1) Consider the system given above with D(s): answer the following questions. 9.4 (s

[answerhappygod]

R S T T Ko D S G Oh S G S H S Q1 Consider The System Given Above With D S Answer The Following Questions 9 4 S 1 (32.5 KiB) Viewed 32 times

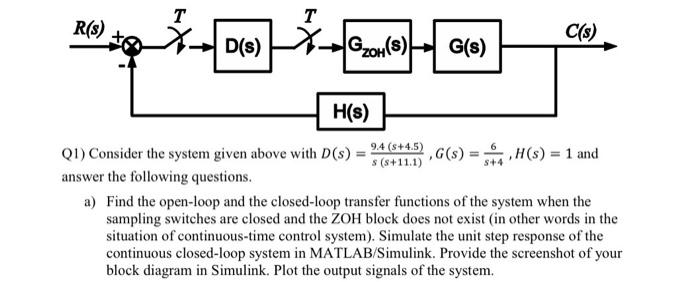

R(s) T T Ko D(s) G₂OH(S) G(S) H(s) Q1) Consider the system given above with D(s): answer the following questions. 9.4 (s+4.5) s (s+11.1) , G(s) C(s) ,H(s) = 1 and a) Find the open-loop and the closed-loop transfer functions of the system when the sampling switches are closed and the ZOH block does not exist (in other words in the situation of continuous-time control system). Simulate the unit step response of the continuous closed-loop system in MATLAB/Simulink. Provide the screenshot of your block diagram in Simulink. Plot the output signals of the system.
