10.5. In the three-phase system shown in Figure 10.26, phase a is on no load and phases band e are short-circuited to gr

Post by answerhappygod »

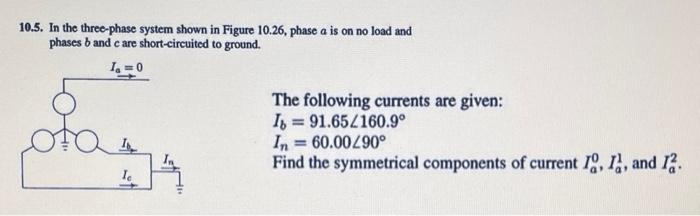

10 5 In The Three Phase System Shown In Figure 10 26 Phase A Is On No Load And Phases Band E Are Short Circuited To Gr 1
10 5 In The Three Phase System Shown In Figure 10 26 Phase A Is On No Load And Phases Band E Are Short Circuited To Gr 1 (18.1 KiB) Viewed 31 times
10.5. In the three-phase system shown in Figure 10.26, phase a is on no load and phases band e are short-circuited to ground. Ia=0 I le The following currents are given: I= 91.65/160.9° In = 60.00/90° Find the symmetrical components of current I, I, and 12.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
