Consider the differential amplifier shown below with RB = 50KQ and Rc = 10K2 and assume the BJT parameters for Q1, Q2, Q

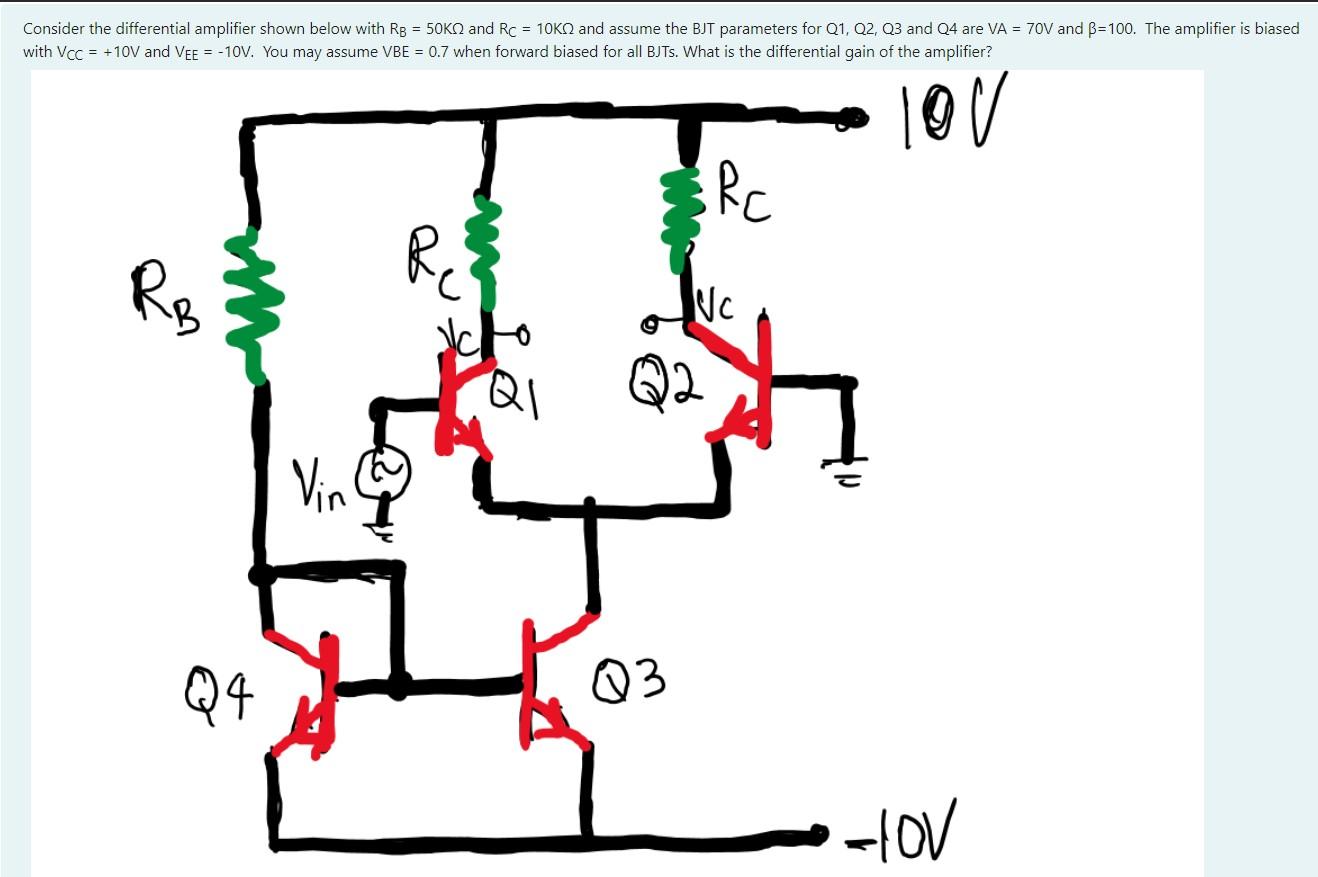

Consider the differential amplifier shown below with RB = 50KQ and Rc = 10K2 and assume the BJT parameters for Q1, Q2, Q3 and Q4 are VA = 70V and B=100. The amplifier is biased with VCC = +10V and VEE = -10V. You may assume VBE = 0.7 when forward biased for all BJTs. What is the differential gain of the amplifier? LOV RB Q4 Vin R₂ Q2 Q3 Rc Nc 101-
a. O b. O C. O d. e. Close to 110 Close to 86 close to 50 Close to 80 Close to 60
