0 5 www R R V www R R ww R For the circuit above: a) Label currents in each of the resistors. b) Write two KCL equations

Post by answerhappygod »

0 5 Www R R V Www R R Ww R For The Circuit Above A Label Currents In Each Of The Resistors B Write Two Kcl Equations 1
0 5 Www R R V Www R R Ww R For The Circuit Above A Label Currents In Each Of The Resistors B Write Two Kcl Equations 1 (13.83 KiB) Viewed 36 times

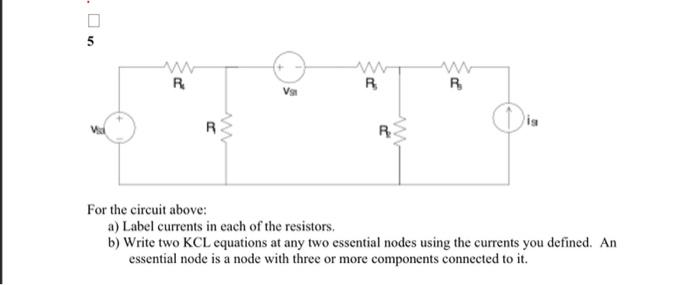

0 5 www R R V www R R ww R For the circuit above: a) Label currents in each of the resistors. b) Write two KCL equations at any two essential nodes using the currents you defined. An essential node is a node with three or more components connected to it.
