A-3-1 A network shown in Fig.A-3-1 has two inputs e, and i,. Suppose the state variables are x₁, x= x= and the output is

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

A-3-1 A network shown in Fig.A-3-1 has two inputs e, and i,. Suppose the state variables are x₁, x= x= and the output is

Post by answerhappygod »

A 3 1 A Network Shown In Fig A 3 1 Has Two Inputs E And I Suppose The State Variables Are X X X And The Output Is 1
A 3 1 A Network Shown In Fig A 3 1 Has Two Inputs E And I Suppose The State Variables Are X X X And The Output Is 1 (20.08 KiB) Viewed 22 times

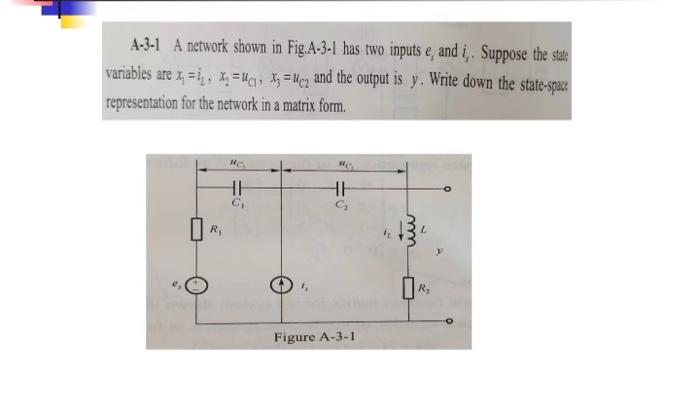

A-3-1 A network shown in Fig.A-3-1 has two inputs e, and i,. Suppose the state variables are x₁, x= x= and the output is y. Write down the state-space representation for the network in a matrix form. R₁ #C H C₁ "C HH C₁ Figure A-3-1 0 R₂
