c) An active-HIGH output seven-segment decoder are shown in Figure 8. If the decoder displays the sequence of digits 5,

[answerhappygod]

C An Active High Output Seven Segment Decoder Are Shown In Figure 8 If The Decoder Displays The Sequence Of Digits 5 1 (31.78 KiB) Viewed 27 times

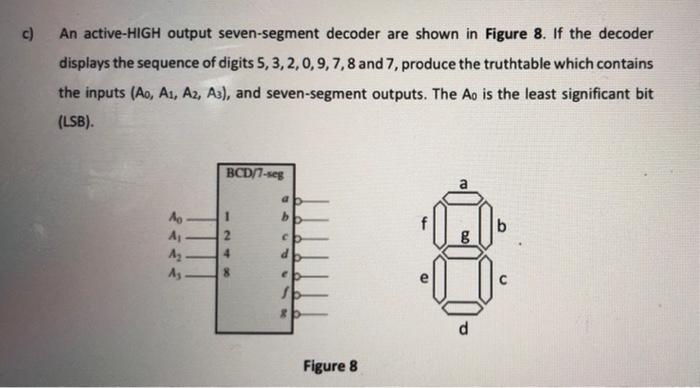

c) An active-HIGH output seven-segment decoder are shown in Figure 8. If the decoder displays the sequence of digits 5, 3, 2, 0, 9, 7, 8 and 7, produce the truthtable which contains the inputs (A0, A1, A2, A3), and seven-segment outputs. The Ao is the least significant bit (LSB). Ao A₁ A₂. A₂ BCD/7-seg 4 8 a Figure 8
