a. Solve for the Thévenin equivalent resistance, Rth. b. Draw the Thévenin equivalent circuit. c. Draw the Norton equiva

Post by answerhappygod »

A Solve For The Thevenin Equivalent Resistance Rth B Draw The Thevenin Equivalent Circuit C Draw The Norton Equiva 1
A Solve For The Thevenin Equivalent Resistance Rth B Draw The Thevenin Equivalent Circuit C Draw The Norton Equiva 1 (23.66 KiB) Viewed 32 times

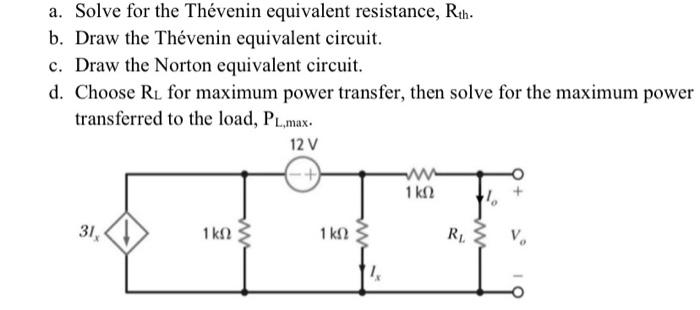

a. Solve for the Thévenin equivalent resistance, Rth. b. Draw the Thévenin equivalent circuit. c. Draw the Norton equivalent circuit. d. Choose R₁ for maximum power transfer, then solve for the maximum power transferred to the load, PL,max. 12 V 31, 1 ΚΩ 1 ΚΩ 1 ΚΩ R₁ ≤ Vo
