(a) A student is required to simplify a Karnaugh Map. He tries to form groups of 1's as shown in Figure Q2(a). i) ii) AB

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

(a) A student is required to simplify a Karnaugh Map. He tries to form groups of 1's as shown in Figure Q2(a). i) ii) AB

Post by answerhappygod »

A A Student Is Required To Simplify A Karnaugh Map He Tries To Form Groups Of 1 S As Shown In Figure Q2 A I Ii Ab 1
A A Student Is Required To Simplify A Karnaugh Map He Tries To Form Groups Of 1 S As Shown In Figure Q2 A I Ii Ab 1 (88.21 KiB) Viewed 42 times

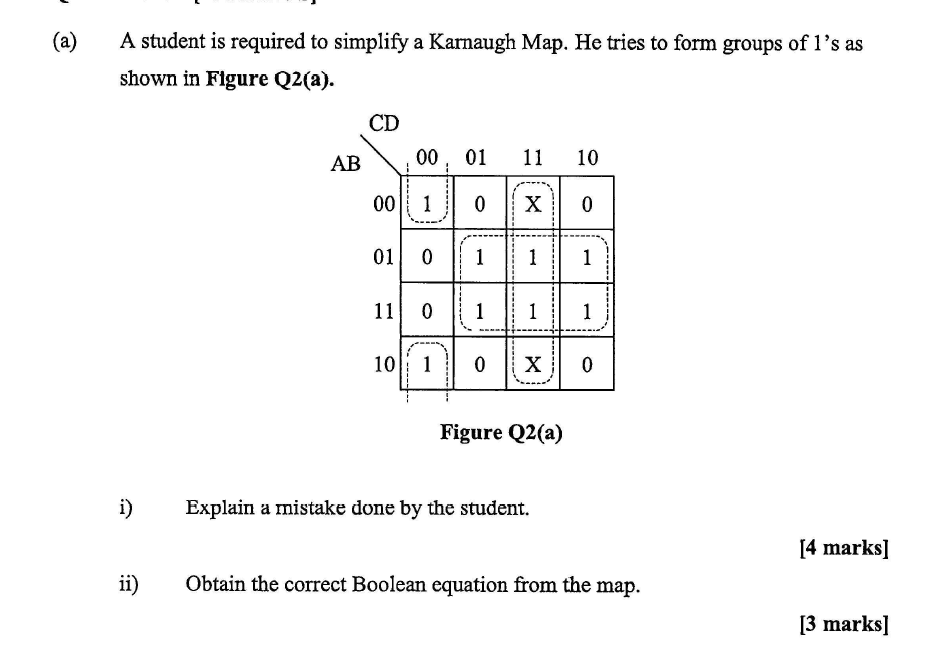

(a) A student is required to simplify a Karnaugh Map. He tries to form groups of 1's as shown in Figure Q2(a). i) ii) AB CD 00, 01 11 10 00 1 0 X 0 01 0 11 011 10 1 1 1 Figure Q2(a) 1 0 X 0 Explain a mistake done by the student. 1 Obtain the correct Boolean equation from the map. [4 marks] [3 marks]
