Question 1: (Total: 30 Marks) discrete/discontinuous Digital signal is a sequence of voltage pulses. For the following d

Post by answerhappygod »

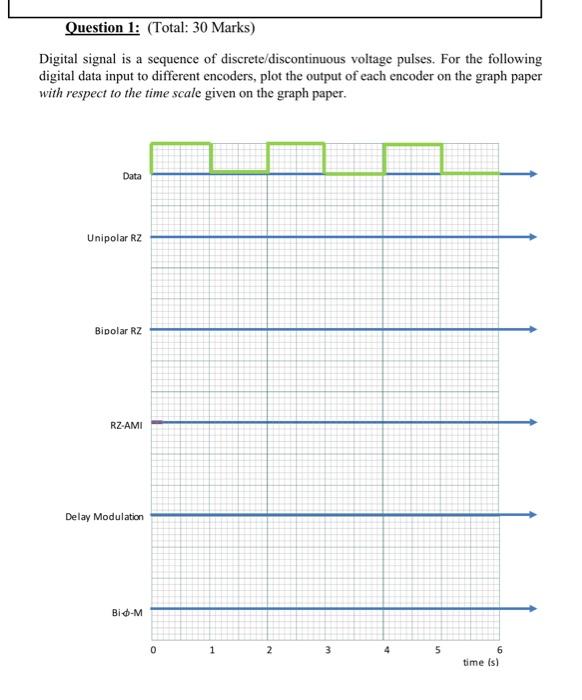

Question 1 Total 30 Marks Discrete Discontinuous Digital Signal Is A Sequence Of Voltage Pulses For The Following D 1
Question 1 Total 30 Marks Discrete Discontinuous Digital Signal Is A Sequence Of Voltage Pulses For The Following D 1 (52.83 KiB) Viewed 34 times
Question 1: (Total: 30 Marks) discrete/discontinuous Digital signal is a sequence of voltage pulses. For the following digital data input to different encoders, plot the output of each encoder on the graph paper with respect to the time scale given on the graph paper. Data Unipolar RZ Bipolar RZ RZ-AMI Delay Modulation Bi-d-M 0 1 2 3 4 5 6 time (s)
