A horizontal antenna of length lamda/2 at f= 200 MHz is to be installed on the roof of the IST at a certain height h. Th

Post by answerhappygod »

A Horizontal Antenna Of Length Lamda 2 At F 200 Mhz Is To Be Installed On The Roof Of The Ist At A Certain Height H Th 1
A Horizontal Antenna Of Length Lamda 2 At F 200 Mhz Is To Be Installed On The Roof Of The Ist At A Certain Height H Th 1 (48.38 KiB) Viewed 63 times
this problem is related to antenna theory and design..plz solve within hour

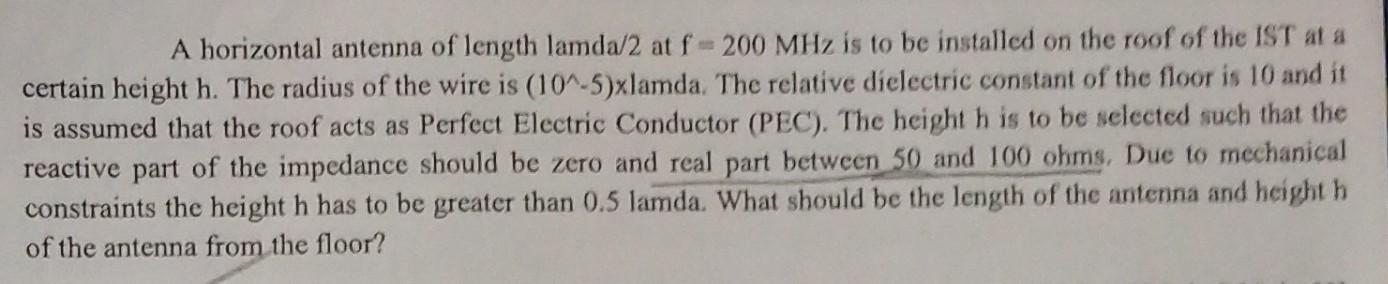

A horizontal antenna of length lamda/2 at f= 200 MHz is to be installed on the roof of the IST at a certain height h. The radius of the wire is (10^-5)xlamda. The relative dielectric constant of the floor is 10 and it is assumed that the roof acts as Perfect Electric Conductor (PEC). The height h is to be selected such that the reactive part of the impedance should be zero and real part between 50 and 100 ohms. Due to mechanical constraints the height h has to be greater than 0.5 lamda. What should be the length of the antenna and height h of the antenna from the floor?
