Question A stationary rectangular conducting loop of width 40 cm and height 50 cm is situated 5 cm from a very long wire

[answerhappygod]

Question A Stationary Rectangular Conducting Loop Of Width 40 Cm And Height 50 Cm Is Situated 5 Cm From A Very Long Wire 1 (31.39 KiB) Viewed 31 times

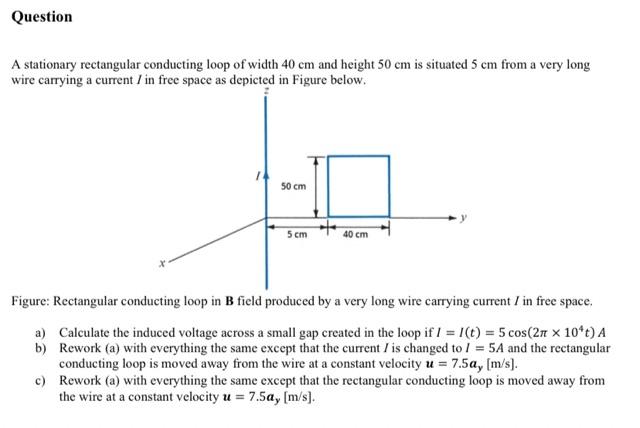

Question A stationary rectangular conducting loop of width 40 cm and height 50 cm is situated 5 cm from a very long wire carrying a current / in free space as depicted in Figure below. 50 cm 5cm 40 cm Figure: Rectangular conducting loop in B field produced by a very long wire carrying current / in free space. a) Calculate the induced voltage across a small gap created in the loop if 1 = 1(t) = 5 cos(2π x 10¹t) A b) Rework (a) with everything the same except that the current / is changed to / = 5A and the rectangular conducting loop is moved away from the wire at a constant velocity u = 7.5a, [m/s]. c) Rework (a) with everything the same except that the rectangular conducting loop is moved away from the wire at a constant velocity u = 7.5a, [m/s].
