5. Three impedances z1 = 8 + j60, z2 = 2 − j1.50 and z3 = 20 are connected in parallel across a 50Hz supply. If the curr

Post by answerhappygod »

5 Three Impedances Z1 8 J60 Z2 2 J1 50 And Z3 20 Are Connected In Parallel Across A 50hz Supply If The Curr 1
5 Three Impedances Z1 8 J60 Z2 2 J1 50 And Z3 20 Are Connected In Parallel Across A 50hz Supply If The Curr 1 (13.37 KiB) Viewed 36 times

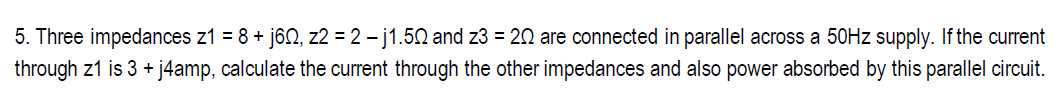

5. Three impedances z1 = 8 + j60, z2 = 2 − j1.50 and z3 = 20 are connected in parallel across a 50Hz supply. If the current through z1 is 3 + j4amp, calculate the current through the other impedances and also power absorbed by this parallel circuit.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
