Consider a unity feedback system with the transfer function K s(s+ 2) (s + 4) desire to obtain the dominant roots with n

Post by answerhappygod »

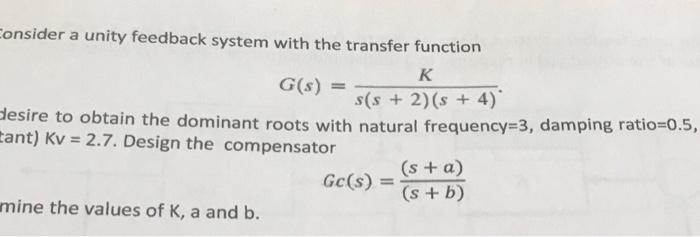

Consider A Unity Feedback System With The Transfer Function K S S 2 S 4 Desire To Obtain The Dominant Roots With N 1
Consider A Unity Feedback System With The Transfer Function K S S 2 S 4 Desire To Obtain The Dominant Roots With N 1 (17.84 KiB) Viewed 39 times
Consider a unity feedback system with the transfer function K s(s+ 2) (s + 4) desire to obtain the dominant roots with natural frequency=3, damping ratio=0.5, tant) Kv=2.7. Design the compensator mine the values of K, a and b. G(s) = = Gc(s) = (s + a) (s + b)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
