- A 3 1 A Network Shown In Fig A 3 1 Has Two Inputs E And I Suppose The State Variables Are X X Uc X3 Uc An 1 (56.8 KiB) Viewed 27 times
A-3-1 A network shown in Fig.A-3-1 has two inputs e, and i,. Suppose the state variables are x₁=₁, x₂ = Uc₁, x3 = Uc₂ an
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
A-3-1 A network shown in Fig.A-3-1 has two inputs e, and i,. Suppose the state variables are x₁=₁, x₂ = Uc₁, x3 = Uc₂ an

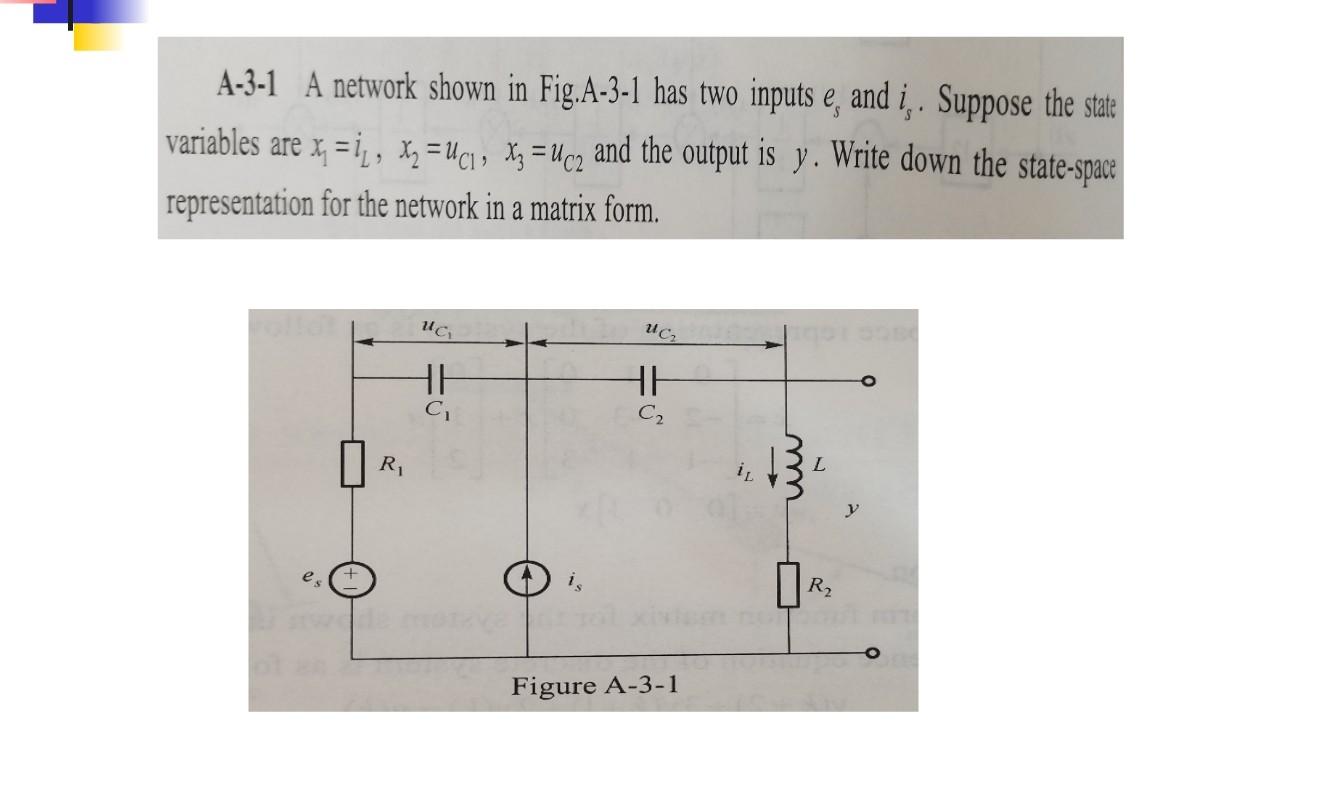

A-3-1 A network shown in Fig.A-3-1 has two inputs e, and i,. Suppose the state variables are x₁=₁, x₂ = Uc₁, x3 = Uc₂ and the output is y. Write down the state-space representation for the network in a matrix form. R₁ UC HE C₁ ucz HH C₂ Figure A-3-1 R₂ O
